FLA-1-350-11

£51.50 + VAT (£61.80 inc. VAT)

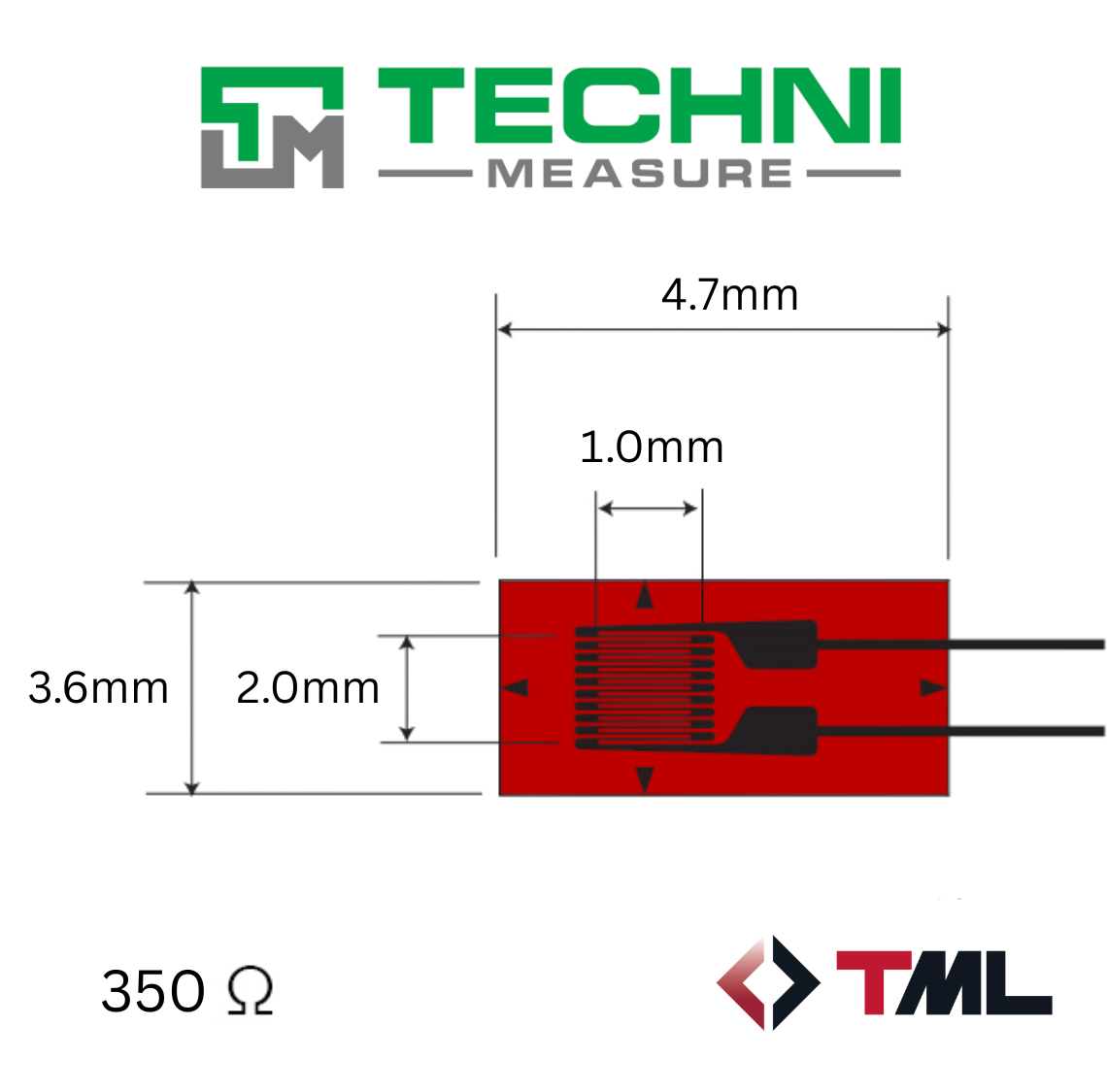

Pack of 10, 1mm 350Ohm linear gauges with mild steel compensation

Out of stock

SKU: FLA-1-350-11 Category:

Description

PLEASE NOTE: These gauges have been superseded by the new FLAB-1-350-11 GOBLET gauge which is CE marked and ROHS2 certified.

Pack of 10, 1mm 350Ohm linear gauges with mild steel compensation

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.

Resistance 350Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Gauge Type

Linear (1 Element)

Material Compensation

11 – Mild Steel

Resistance (Ω)

350

Max Operating Temperature (°C)

80

Min Operating Temperature (°C)

-20
