£37.50 + VAT (£45.00 inc. VAT)

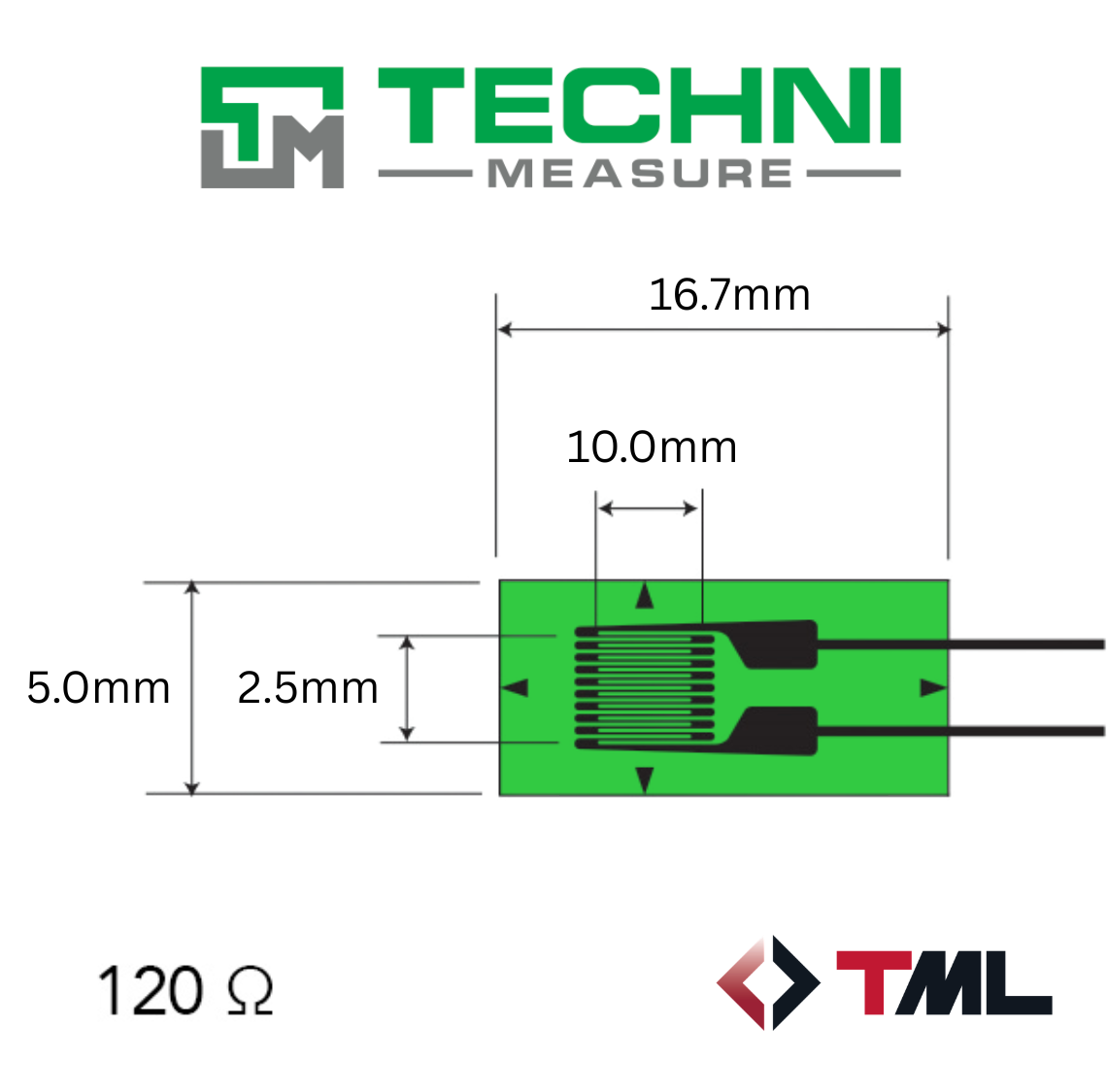

Pack of 10, 10mm linear gauges with aluminium compensation

Out of stock

SKU: FLA-10-23 Category:


PLEASE NOTE: These gauges have been superseded by the new FLAB-10-23 GOBLET gauge which is CE marked and ROHS2 certified

Pack of 10, 10mm linear gauges with aluminium compensation

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.

Resistance 120Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Material Compensation

23 – Aluminium

Resistance (Ω)


Max Operating Temperature (°C)


Min Operating Temperature (°C)


Gauge Type

Linear (1 Element)
