PLEASE NOTE: These gauges have been superseded by the new FLAB-3-11 GOBLET gauge which is CE marked and ROHS2 certified

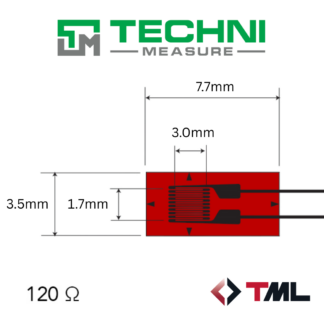

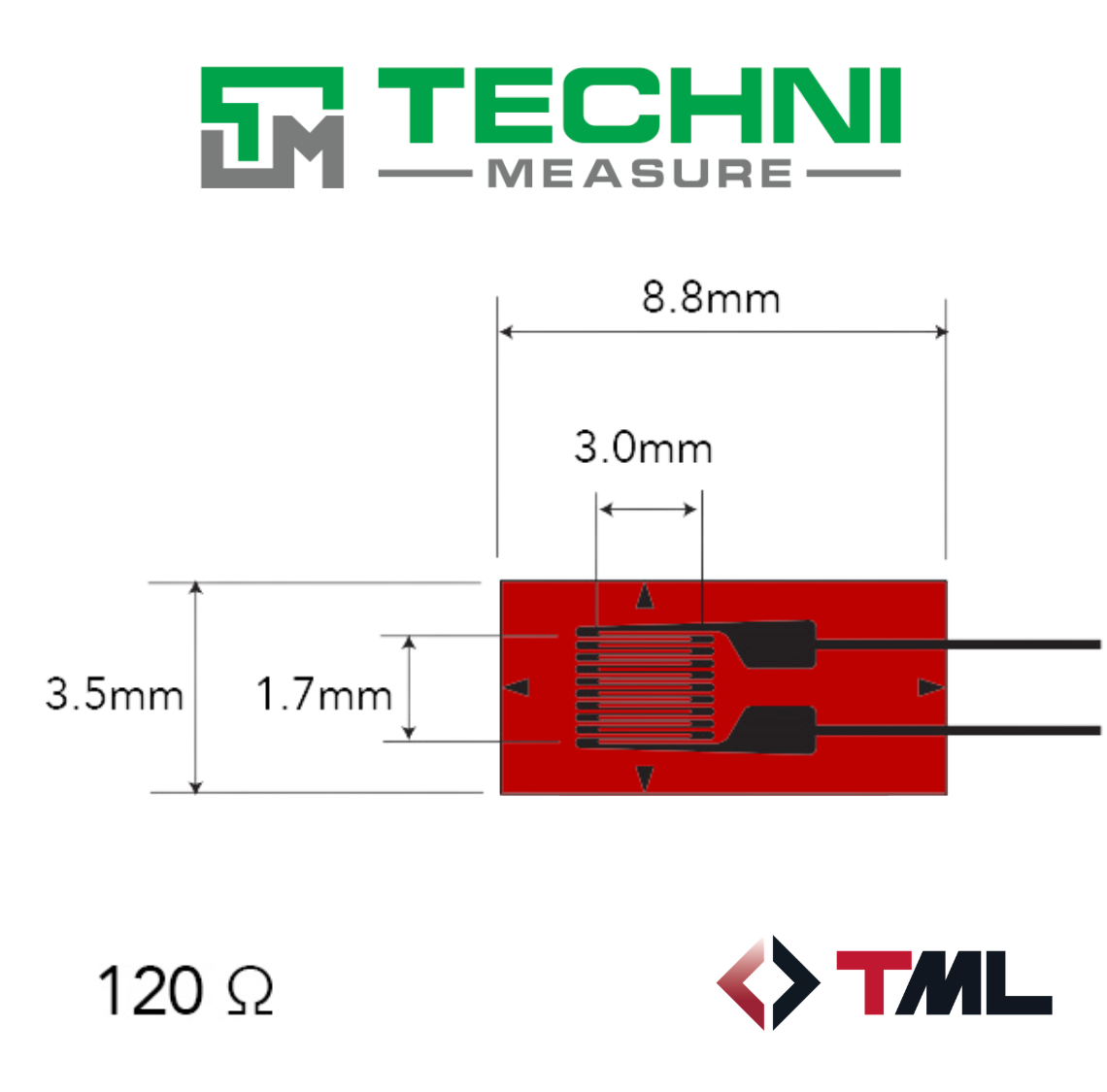

Pack of 10, 3mm linear gauges with mild steel compensation
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.
|Applicable specimen||Metal, Glass, Ceramics|
|Operational temp. (°C)||-20~+80°C|
|Strain Limit||5% (50000×10-6 strain)|
|Bonding adhesive||CN, P-2, EB-2|
