Description
PLEASE NOTE: These gauges have been superseded by the new FLAB-1-350-17 GOBLET gauge, which is CE-marked and RoHS2-certified.

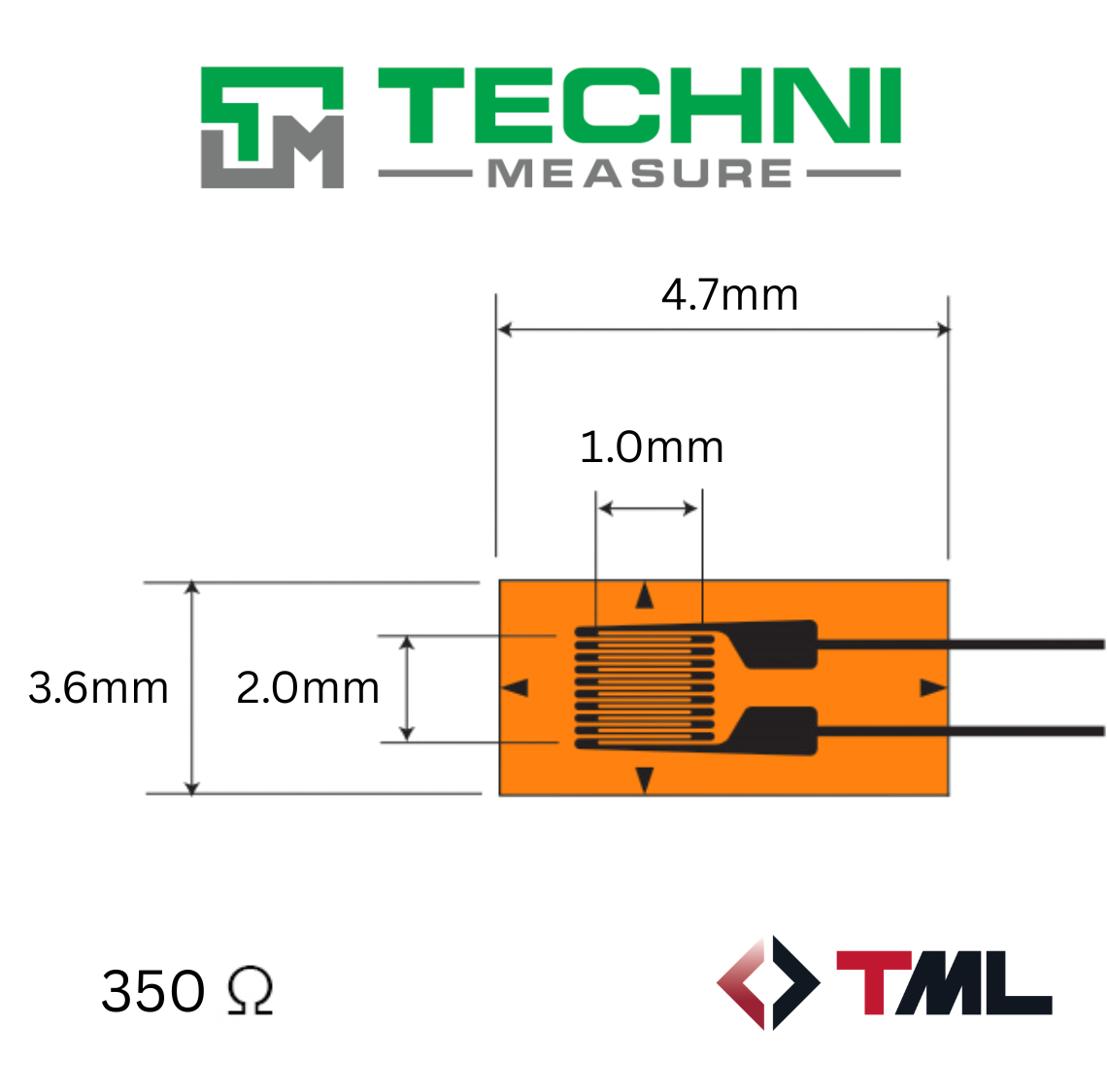

Pack of 10, 1mm 350Ohm linear gauges with stainless steel compensation.
These are foil strain gauges designed for general use, featuring an extended operating temperature range of -196 to +150°C due to the incorporation of special plastic backings. The backings are colour-coded to indicate the specific material for self-temperature compensation. Additionally, a variety of lead wires are available for this series to accommodate different measurement conditions.
| Resistance | 350Ω |
| Applicable specimen | Metal, Glass, Ceramics |
| Backing | Special Plastics |
| Operational temp. (°C) |  -196~+150°C |
| Element | Cu-Ni |
| Strain Limit | 5% (50000×10-6 strain) |
| Bonding adhesive | CN, P-2, EB-2 |
