Description

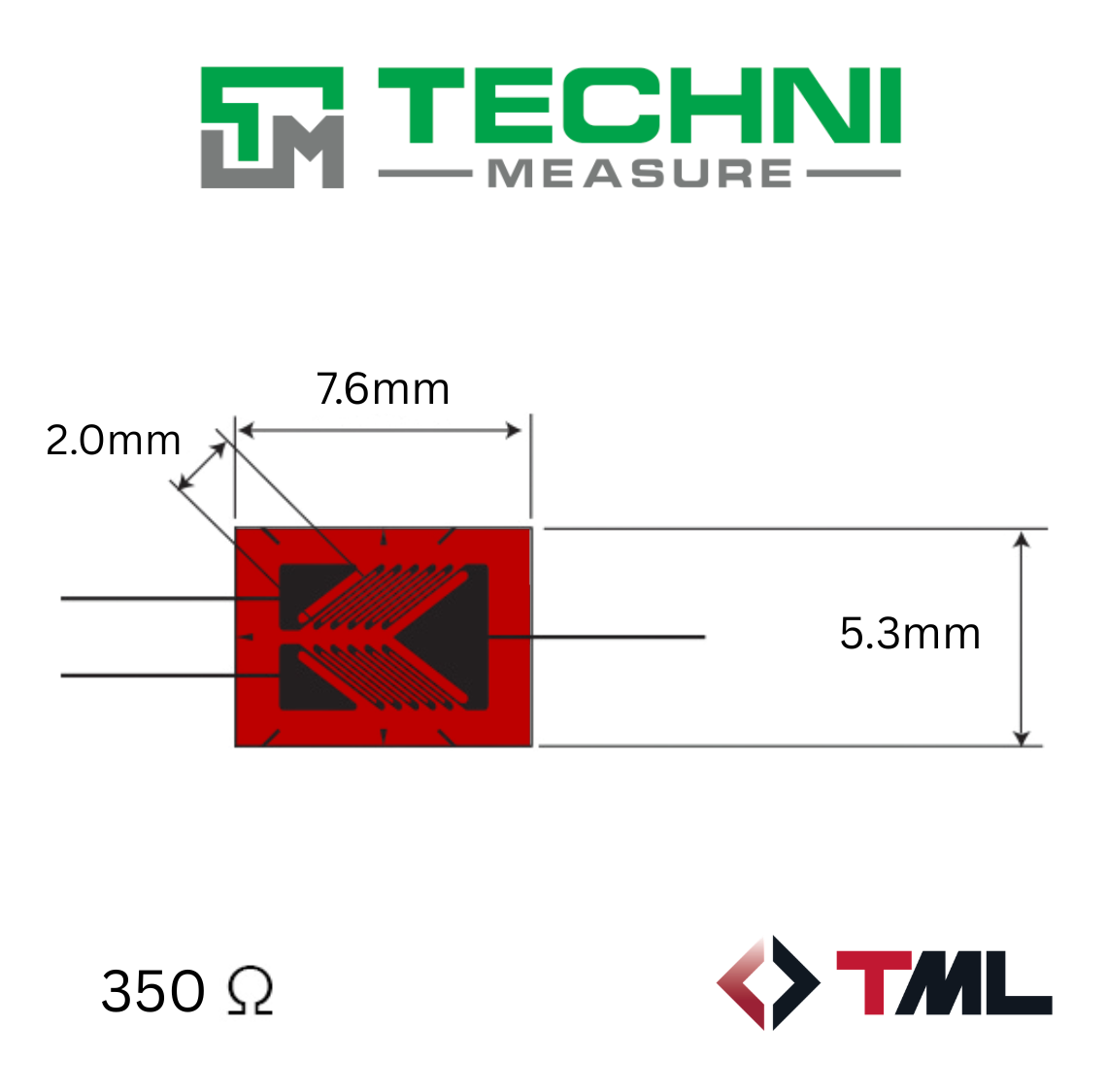

Pack of 10, 2mm 350Ohm torque gauges with mild steel compensation.
These are foil strain gauges designed for general-use torque measurement, featuring an extended operating temperature range of -196 to +150°C due to the incorporation of special plastic backings. The backings are colour-coded to indicate the specific material for self-temperature compensation. Additionally, a variety of lead wires are available for this series to accommodate different measurement conditions.
Strain gauges dedicated to special usage, including shearing strain measurement, torque measurement and 2-axis plane-type strain gauges, are compliant with the RoHS Directive if they are supplied with Option-F.
| Resistance | 350Ω |
| Applicable specimen | Metal, Glass, Ceramics |
| Backing | Special Plastics |
| Operational temp. (°C) | -196~+150°C |
| Element | Cu-Ni |
| Strain Limit | 5% (50000×10-6 strain) |
| Bonding adhesive | CN, P-2, EB-2 |
