FLA-6-350-17

£42.00 + VAT (£50.40 inc. VAT)

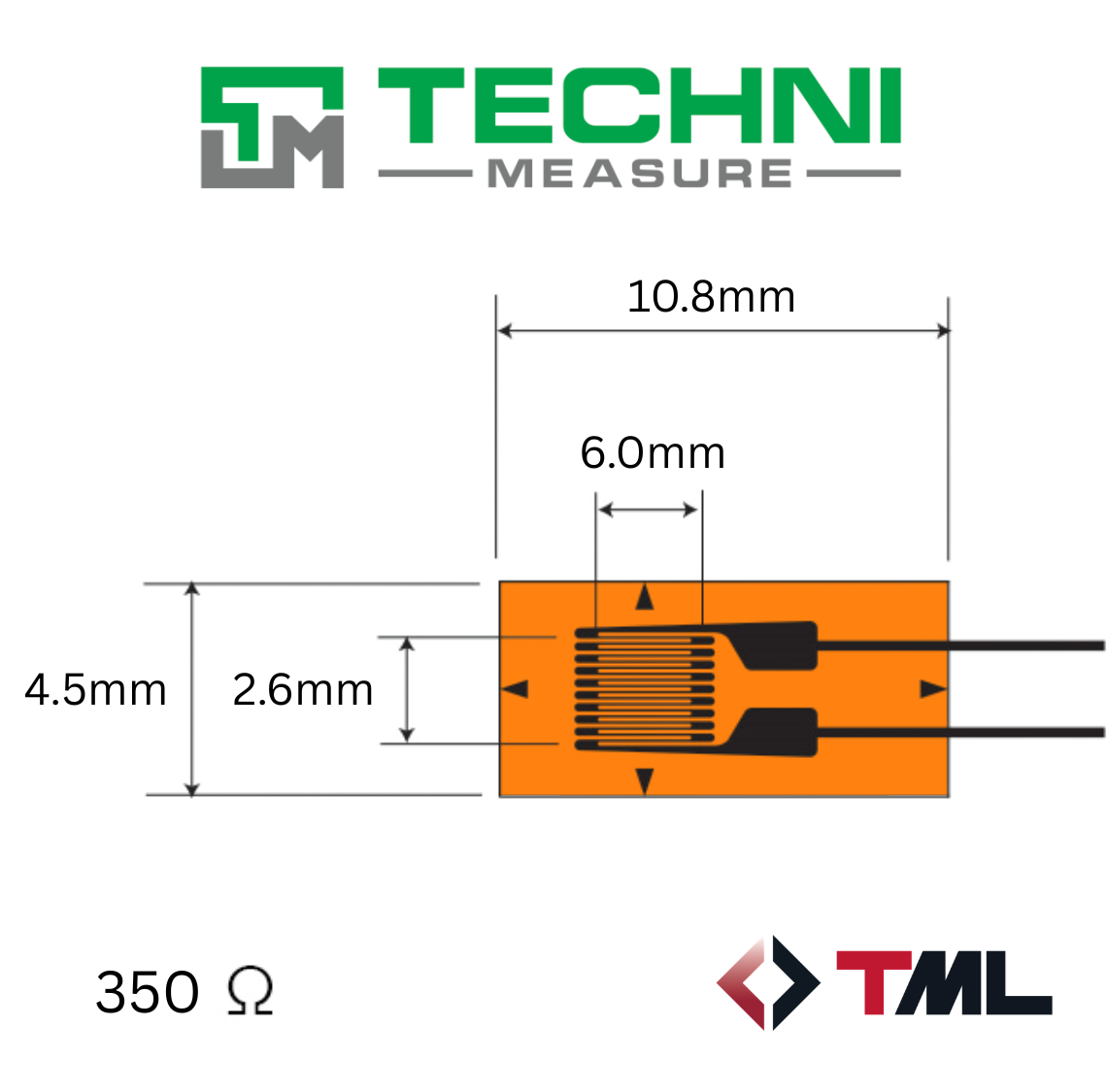

Pack of 10, 6mm 350Ohm linear gauges with stainless steel compensation

9 in stock

SKU: FLA-6-350-17 Category:

Description

Pack of 10, 6mm 350Ohm linear gauges with stainless steel compensation

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.

Resistance 350Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

80

Resistance (Ω)

350

Material Compensation

17 – Stainless Steel

Gauge Type

Linear (1 Element)
