Description

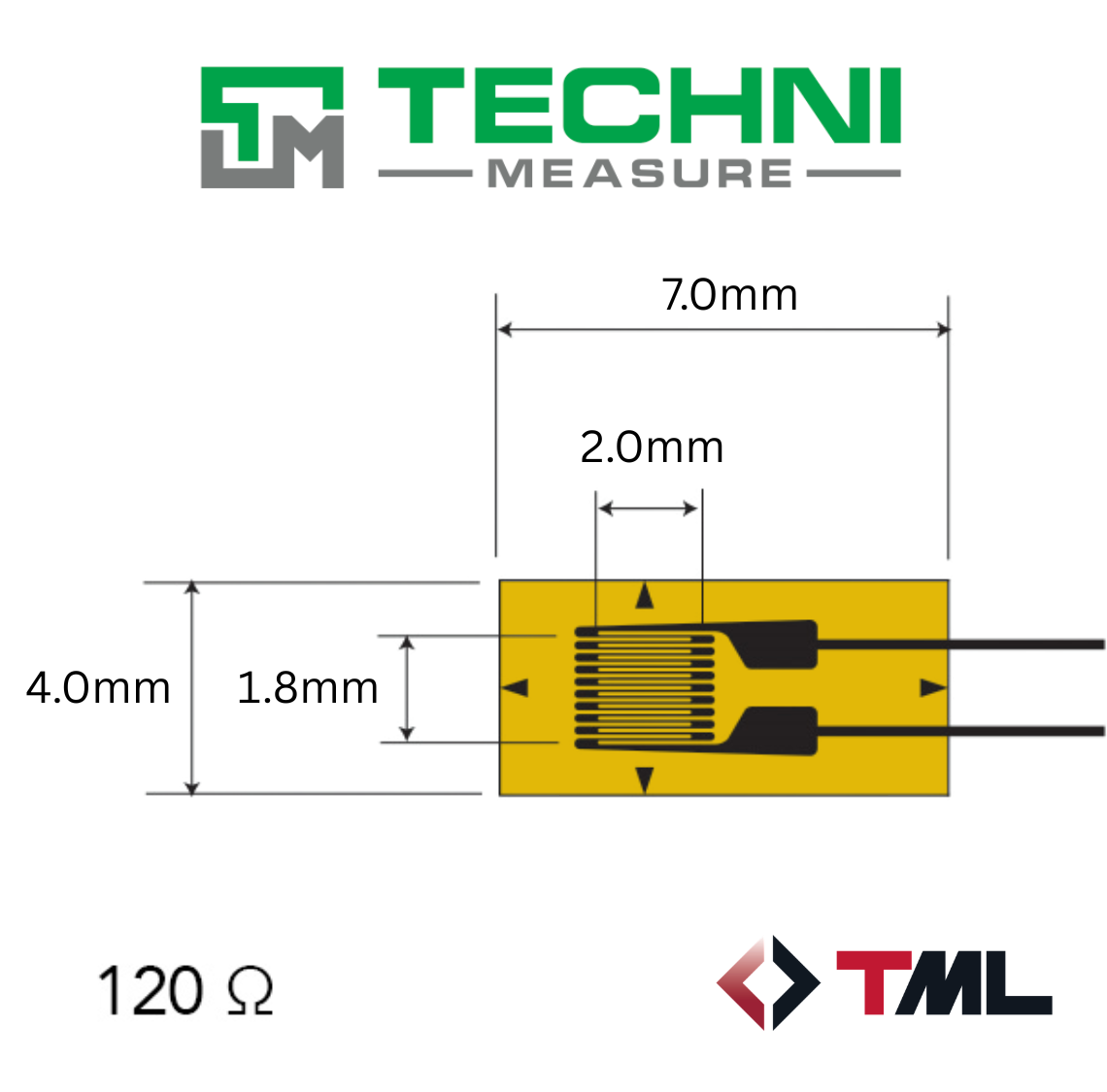

Pack of 10, 2mm post yield linear gauges, 10-15% strain
This gauge is designed for measurement of large strain up to 10 to 15%. Also it is durable to the measurement of repeated strain in elastic range (at strain level ±1500×10-6) like as ordinary strain gauge. However it is not applicable to the measurement of repeated strain in large range. The CN-Y is recommended as an adhesive if the measurement is made after a few days or longer of strain gauge bonding. Large strain measurement is possible even after one year of bonding the gauge with the CN-Y adhesive. (Provided that the specimen is stored in room temperature.)
Resistance | 120Ω |
Applicable specimen | Metal |
Backing | Special plastics |
Operational temp. (°C) | -20~+80°C |
Element | Cu-Ni |
Strain Limit | 10~15%(100000~150000×10-6strain) |
Bonding adhesive | CN, CN-Y |
