YEFLA-5

£46.50 + VAT (£55.80 inc. VAT)

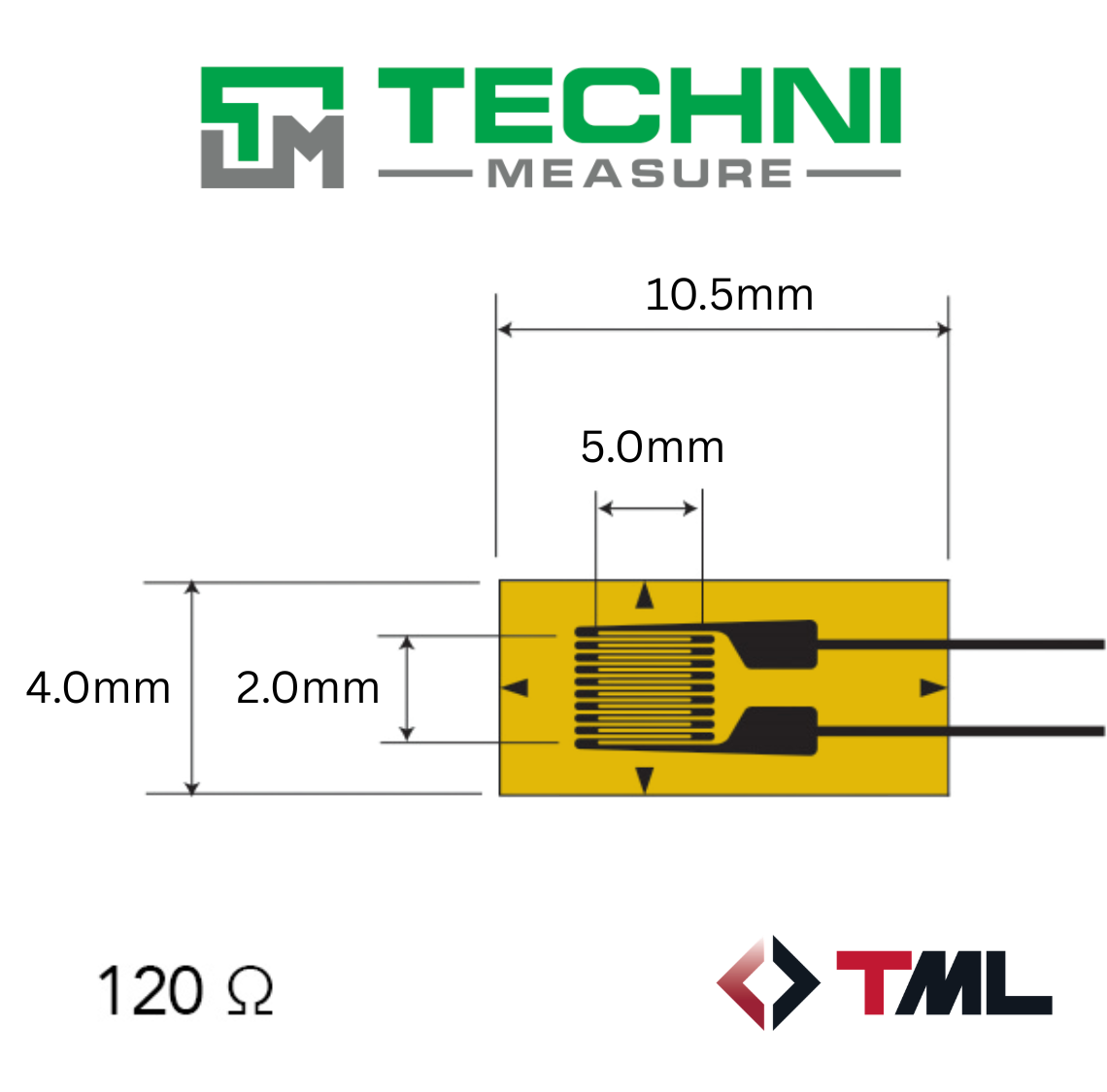

Pack of 10, 5mm post yield linear gauges, 10-15% strain

10 in stock

SKU: YEFLA-5 Category:

Description

Pack of 10, 5mm post yield linear gauges, 10-15% strain

This gauge is designed for measurement of large strain up to 10 to 15%. Also it is durable to the measurement of repeated strain in elastic range (at strain level ±1500×10-6) like as ordinary strain gauge. However it is not applicable to the measurement of repeated strain in large range. The CN-Y is recommended as an adhesive if the measurement is made after a few days or longer of strain gauge bonding. Large strain measurement is possible even after one year of bonding the gauge with the CN-Y adhesive. (Provided that the specimen is stored in room temperature.)

Resistance 120Ω
Applicable specimen Metal
Backing Special plastics
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 10~15%(100000~150000×10-6strain)
Bonding adhesive CN, CN-Y

Additional information

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

80

Resistance (Ω)

120

Gauge Length (mm)

5

Gauge Type

Linear (1 Element)

Material Compensation
