YFLA-2

£71.00 + VAT (£85.20 inc. VAT)

Pack of 10, 2mm post yield linear gauges, 15-20% strain

12 in stock

SKU: YFLA-2 Category:

Description

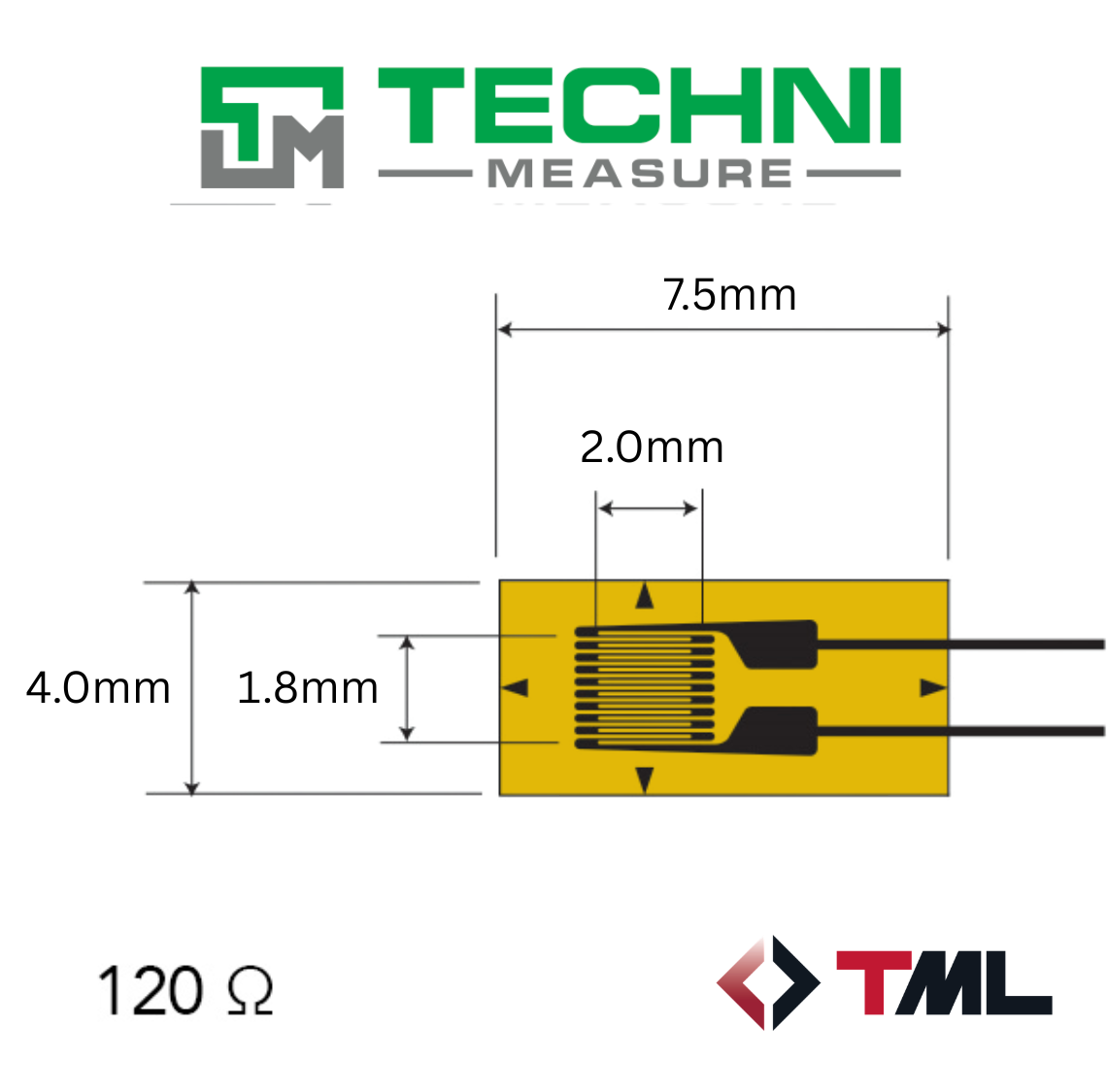

Pack of 10, 2mm post yield linear gauges, 15-20% strain

This gauge is designed for measurement of large strain up to 15 to 20%. It is not applicable to the measurement of repeated strain either in elastic nor in large range. The CN-Y is recommended as an adhesive if the measurement is made after a few days or longer of strain gauge bonding. Large strain measurement is possible even after one year of bonding the gauge with the CN-Y adhesive. (Provided that the specimen is stored in room temperature.)

Resistance 120Ω
Applicable specimen Metal
Backing Special plastics
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 15~20%(150000~200000×10-6strain)
Bonding adhesive CN, CN-Y

Additional information

Resistance (Ω)

120

Max Operating Temperature (°C)

80

Min Operating Temperature (°C)

-20

Gauge Length (mm)

2

Gauge Type

Linear (1 Element)
