FLAB-10-11

£52.50 + VAT (£63.00 inc. VAT)

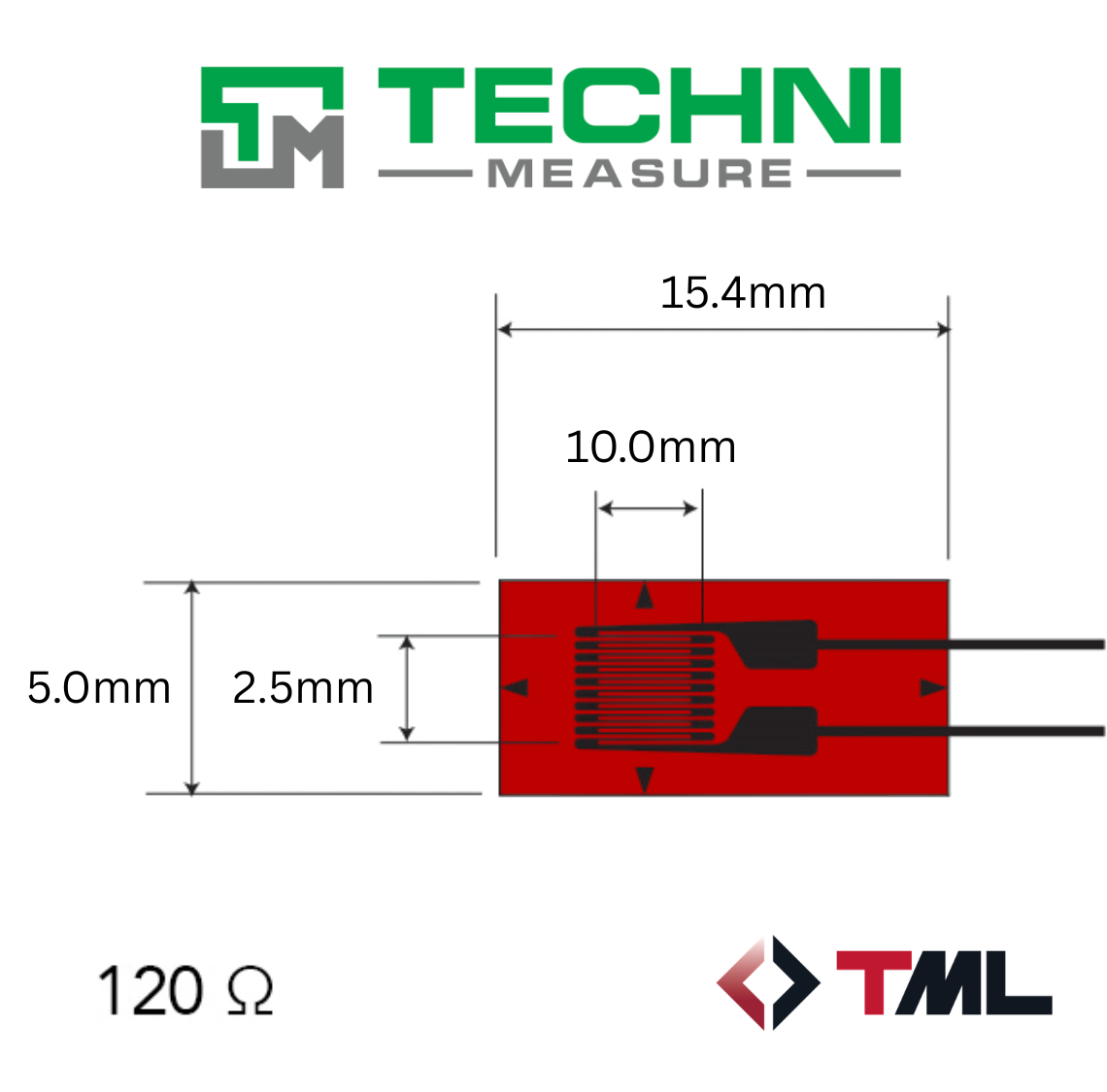

Pack of 10, 10mm linear GOBLET gauges with mild steel compensation

91 in stock

SKU: FLAB-10-11 Category:

Description

Pack of 10, 10mm linear GOBLET gauges with mild steel compensation

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy
resin for the backing. The epoxy resin backing exhibits excellent
electrical insulation performance, and is color-coded to identify the
objective material for self-temperature-compensation. All standard
strain gauges come with 2cm lead wires pre-attached.

Resistance 120Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -196~+150°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Gauge Length (mm)

10

Gauge Type

Linear (1 Element)

Material Compensation

11 – Mild Steel

Resistance (Ω)

120

Max Operating Temperature (°C)

150

Min Operating Temperature (°C)

-196
