Description

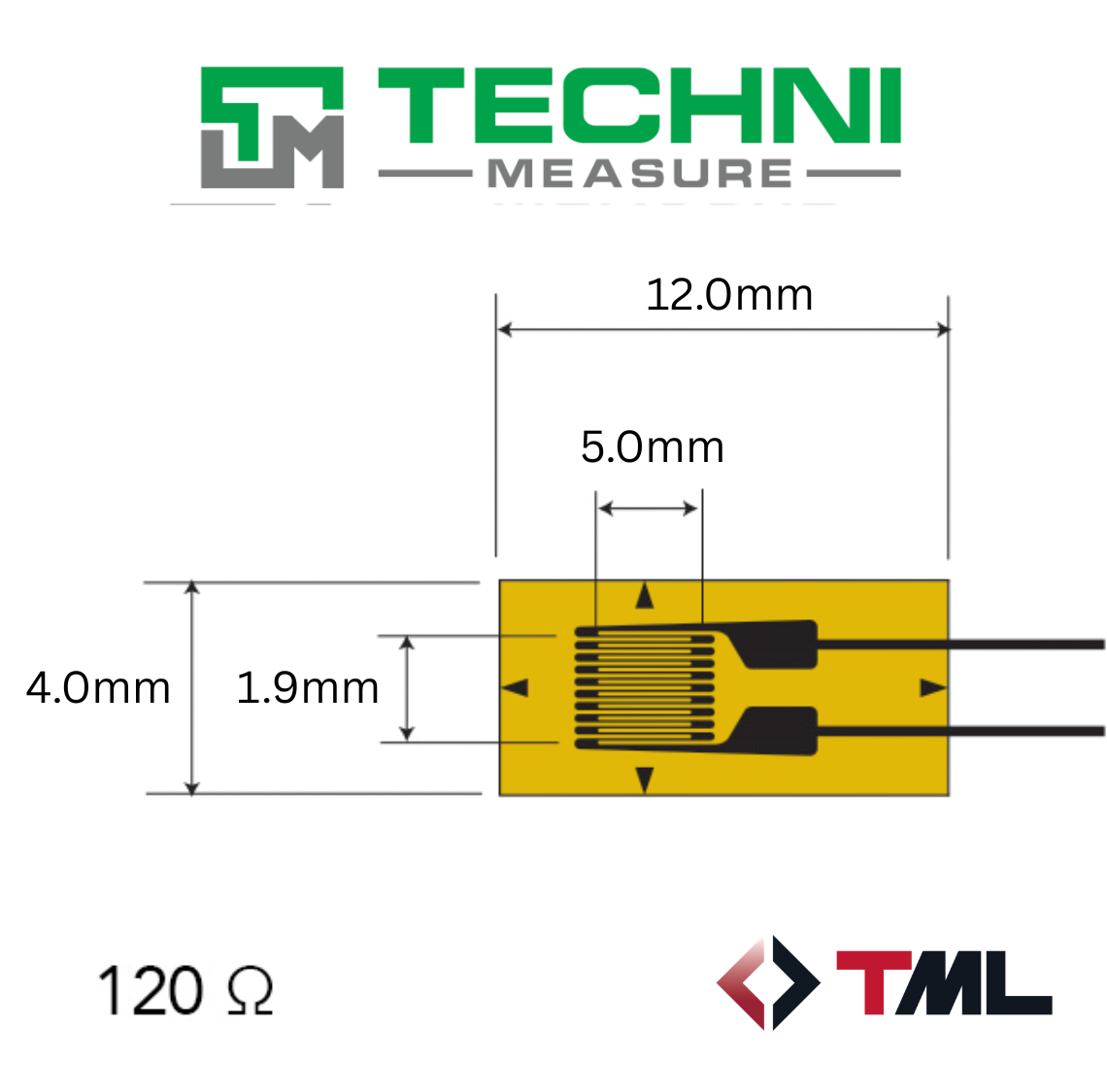

Pack of 10, 5mm post yield linear gauges, 15-20% strain
This gauge is designed for measurement of large strain up to 15 to 20%. It is not applicable to the measurement of repeated strain either in elastic nor in large range. The CN-Y is recommended as an adhesive if the measurement is made after a few days or longer of strain gauge bonding. Large strain measurement is possible even after one year of bonding the gauge with the CN-Y adhesive. (Provided that the specimen is stored in room temperature.)
| Resistance | 120Ω |
| Applicable specimen | Metal |
| Backing | Special plastics |
| Operational temp. (°C) | -20~+80°C |
| Element | Cu-Ni |
| Strain Limit | 15~20%(150000~200000×10-6strain) |
| Bonding adhesive | CN, CN-Y |
