QFLA-3-11

£46.50 + VAT (£55.80 inc. VAT)

Pack of 10, 3mm 200 deg C Linear Gauges with mild steel compensation

4 in stock

SKU: QFLA-3-11 Category:

Description

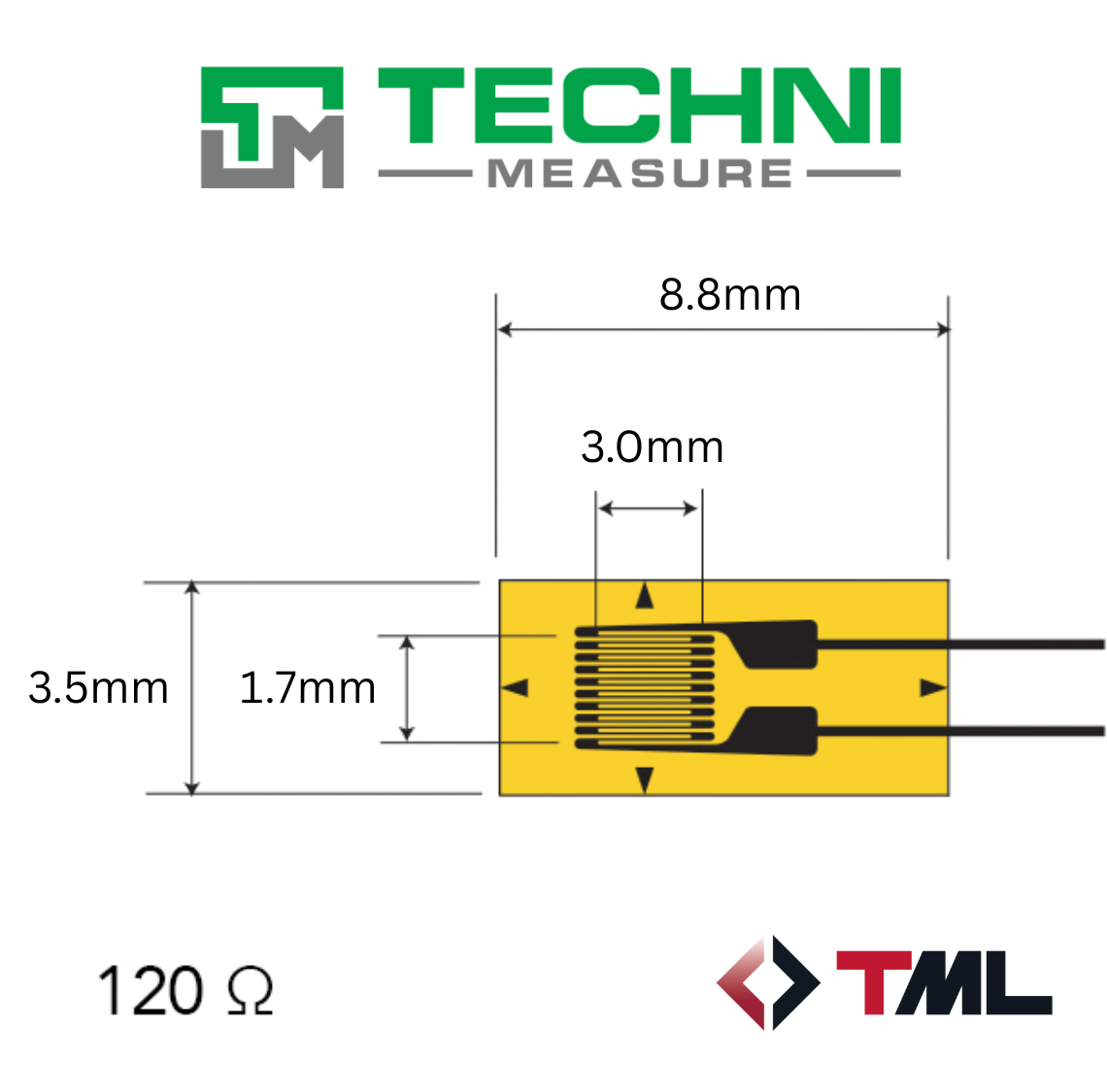

Pack of 10, 3mm 200 deg C Linear Gauges with mild steel compensation

This gauge utilizes polyimide resin as a backing. Strain measurement in high temperature is easily realized by bonding the gauge with room temperature curing adhesive NP-50. All standard strain gauges come with 2cm lead wires pre-attached.

Resistance 120Ω
Applicable specimen Metal, Ceramics
Backing Polyimide
Operational temp. (°C) -20~+200°C
Element Cu-Ni alloy foil
Strain Limit 3%(30000×10-6strain)
Bonding adhesive NP-50B, CN, C-1

Additional information

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

200

Gauge Type

Linear (1 Element)

Material Compensation

11 – Mild Steel

Resistance (Ω)

120
