Description

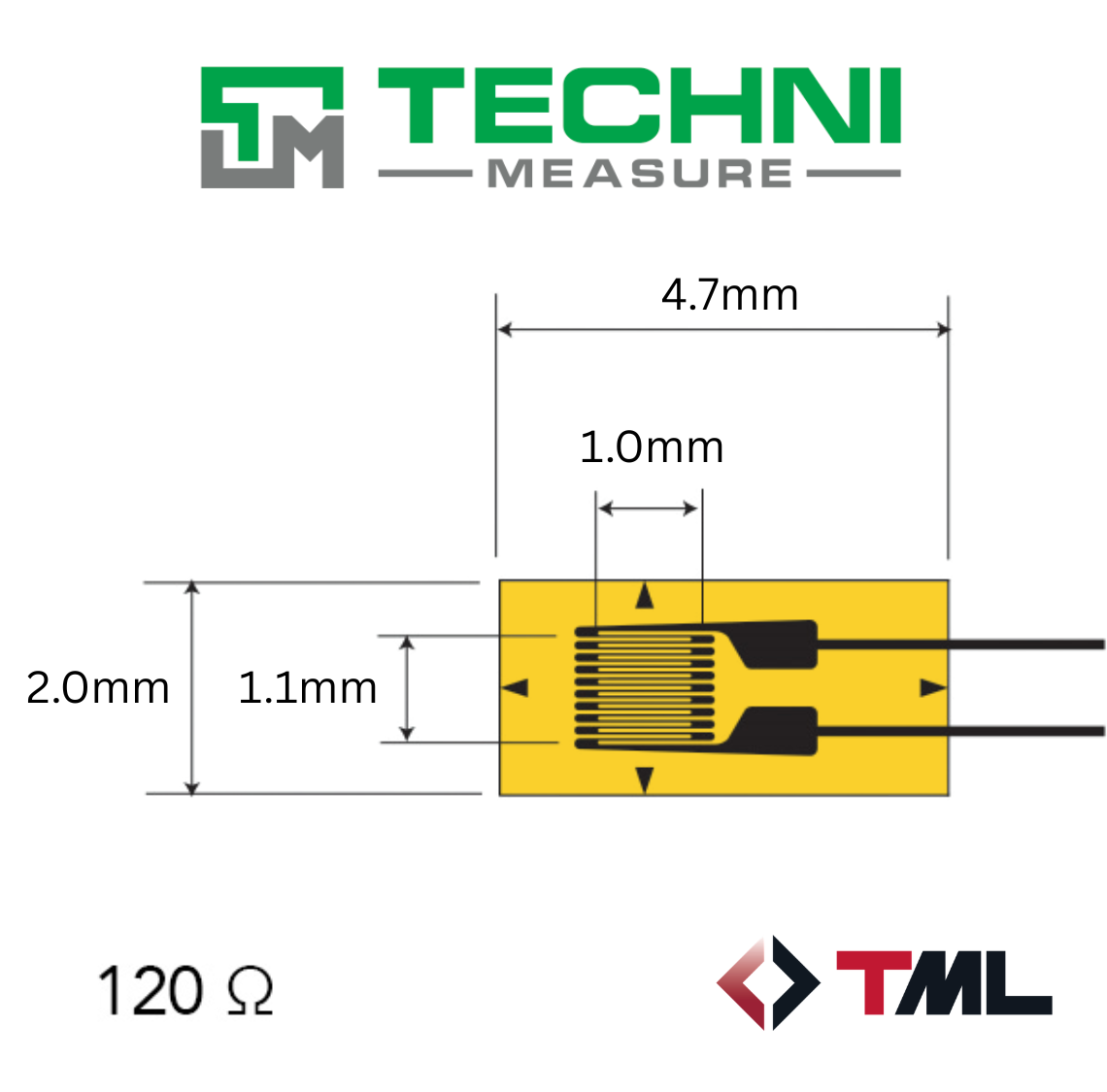

Pack of 10, 1mm 200degC GOBLET linear gauges with mild steel compensation.
This gauge utilises polyimide resin as a backing. Strain measurement at high temperature is easily achieved by bonding the gauge with room-temperature-curing adhesive NP-50B. All standard strain gauges come with 2cm lead wires pre-attached.
| Resistance | 120Ω |
| Applicable specimen | Metal, Ceramics |
| Backing | Polyimide |
| Operational temp. (°C) | -30~+200°C |
| Element | Cu-Ni alloy foil |
| Strain Limit | 3%(30000×10-6strain) |
| Bonding adhesive | C-1/EB-2, CN, NP-50B |
