£207.00 + VAT (£248.40 inc. VAT)

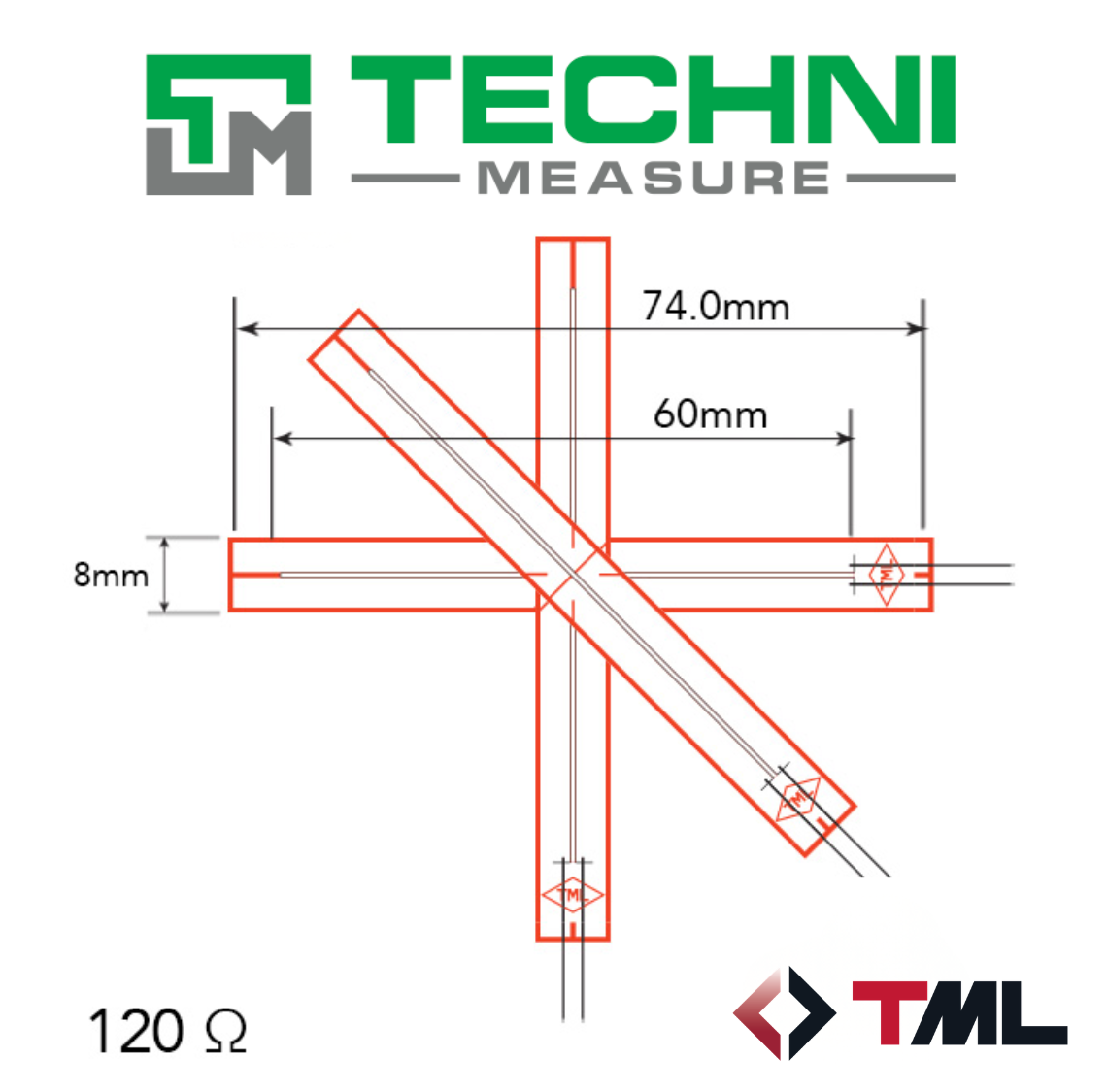

Pack of 10, 60mm Polyester rosette wire gauges with mild steel compensation
1 in stock
Pack of 10, 60mm Polyester rosette wire gauges with mild steel compensation
This is a wire strain gauge having polyester resin backing. It is mainly used for measurement on concrete, mortar or rock. All standard strain gauges come with 2cm lead wires pre-attached.
| Resistance | 120Ω |
| Applicable specimen | Concrete, Mortar |
| Backing | Polyester |
| Operational temp. (°C) | -20~+80°C |
| Element | Cu-Ni (wire) |
| Strain Limit | 2%(20000×10-6strain |
| Bonding adhesive | CN-E, RP-2, PS |
| Min Operating Temperature (°C) | -20 |
|---|---|
| Max Operating Temperature (°C) | 80 |
| Gauge Type | Rosette (3 Element) |
| Material Compensation | 11 – Mild Steel |
| Resistance (Ω) | 120 |
