PFLR-20-11

£244.00 + VAT (£292.80 inc. VAT)

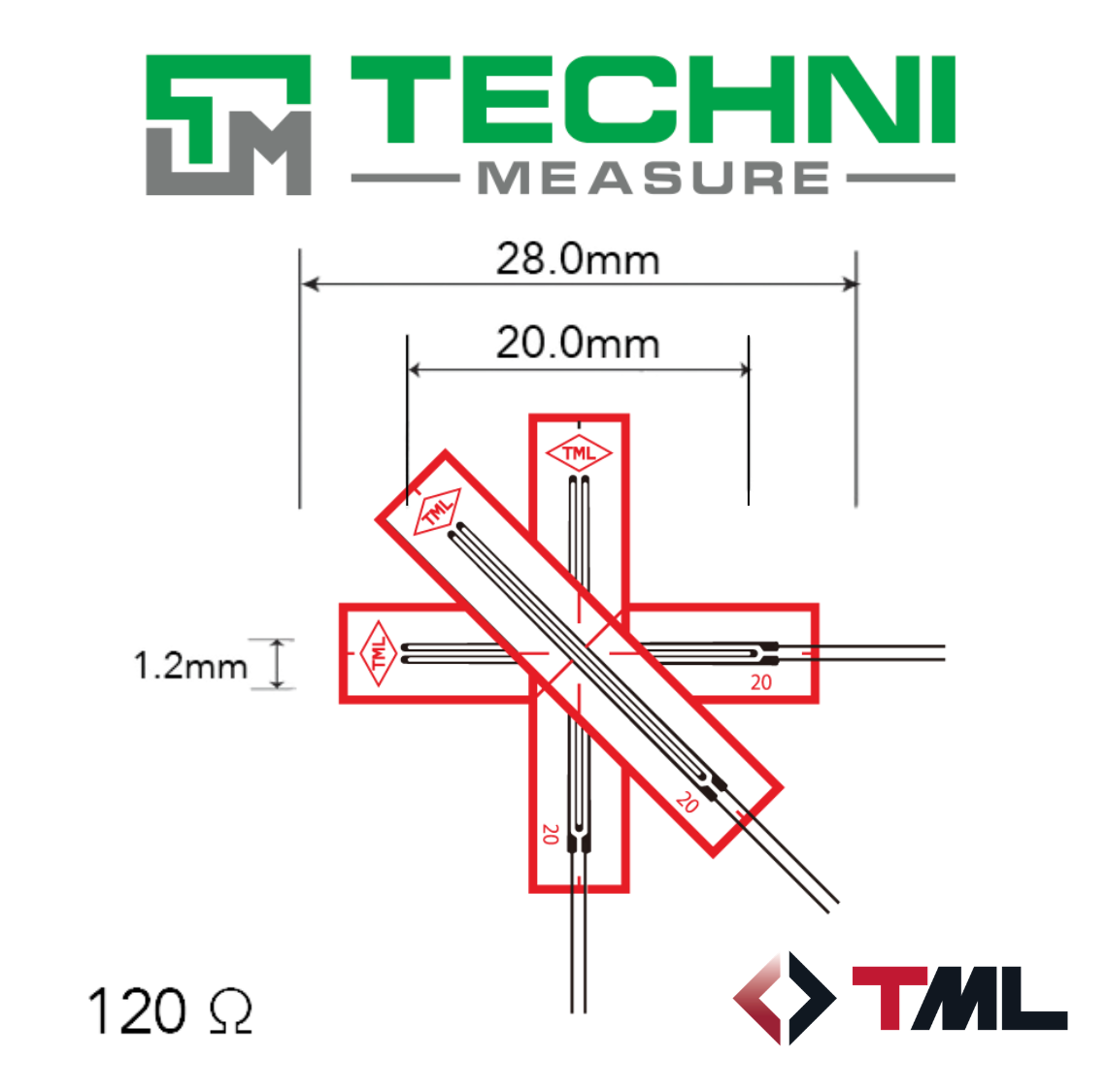

Pack of 10, 20mm Polyester rosette gauges with mild steel compensation

1 in stock

SKU: PFLR-20-11 Category:

Description

Pack of 10, 20mm Polyester rosette gauges with mild steel compensation

These are foil strain gauges utilizing a polyester resin backing which is the same as the P series. The gauge length is available in 3 ranges of 10, 20 and 30mm, so it is suited mainly to strain measurement on concrete or mortar. The backing is transparent and the installation is easy.

Resistance 120Ω
Applicable specimen Metal, Concrete, Mortar
Backing Polyester
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 2%(20000×10-6strain)
Bonding adhesive CN-E, RP-2, PS

Additional information

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

80

Gauge Type

Rosette (3 Element)

Material Compensation

11 – Mild Steel

Resistance (Ω)

120
