Description

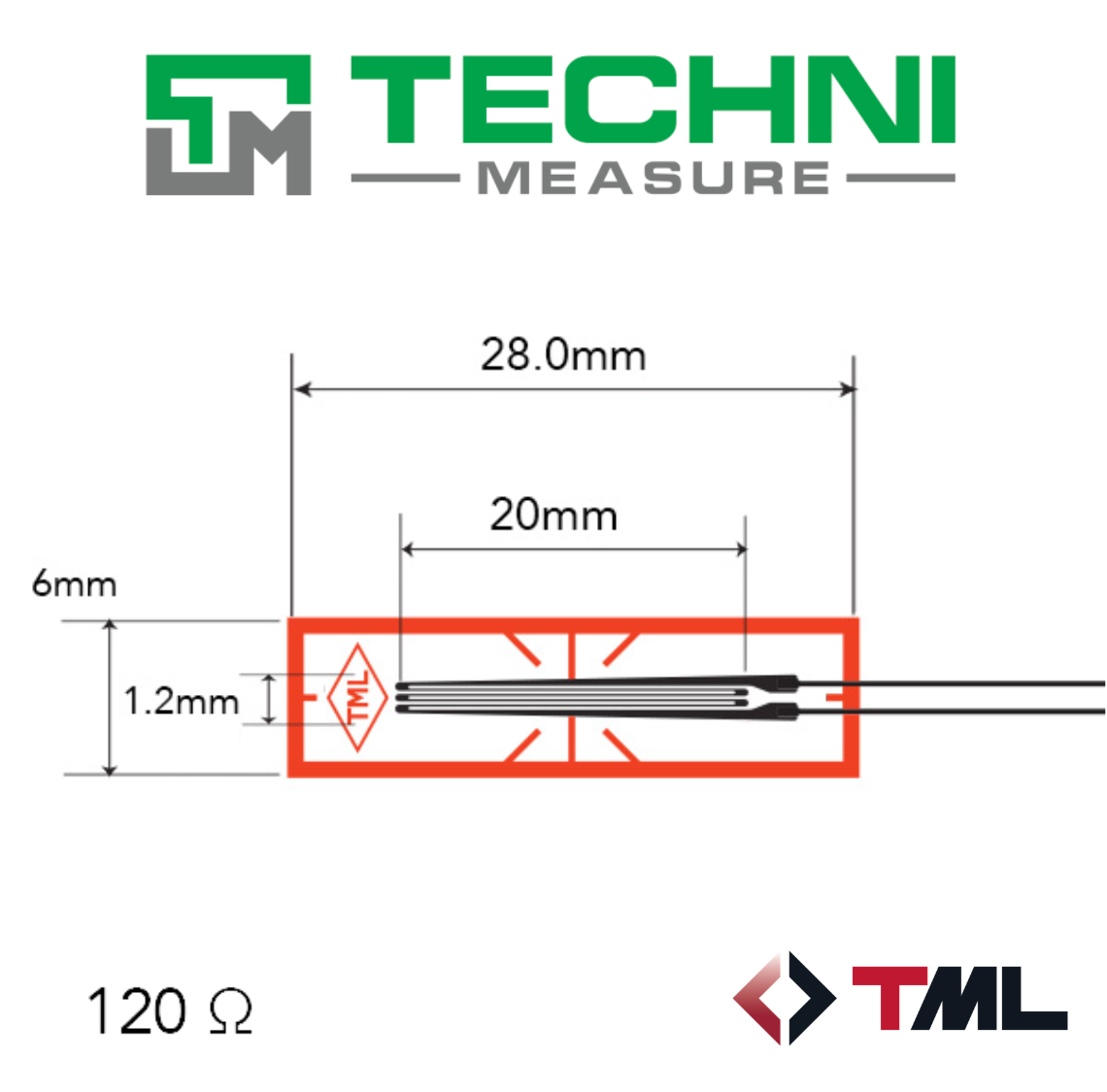

Pack of 10, 20mm Polyester linear gauges with mild steel compensation
These are foil strain gauges utilizing a polyester resin backing which is the same as the P series. The gauge length is available in 3 ranges of 10, 20 and 30mm, so it is suited mainly to strain measurement on concrete or mortar. The backing is transparent and the installation is easy.
| Resistance | 120Ω |
| Applicable specimen | Metal, Concrete, Mortar |
| Backing | Polyester |
| Operational temp. (°C) | -20~+80°C |
| Element | Cu-Ni |
| Strain Limit | 2%(20000×10-6strain) |
| Bonding adhesive | CN-E, RP-2, PS |
