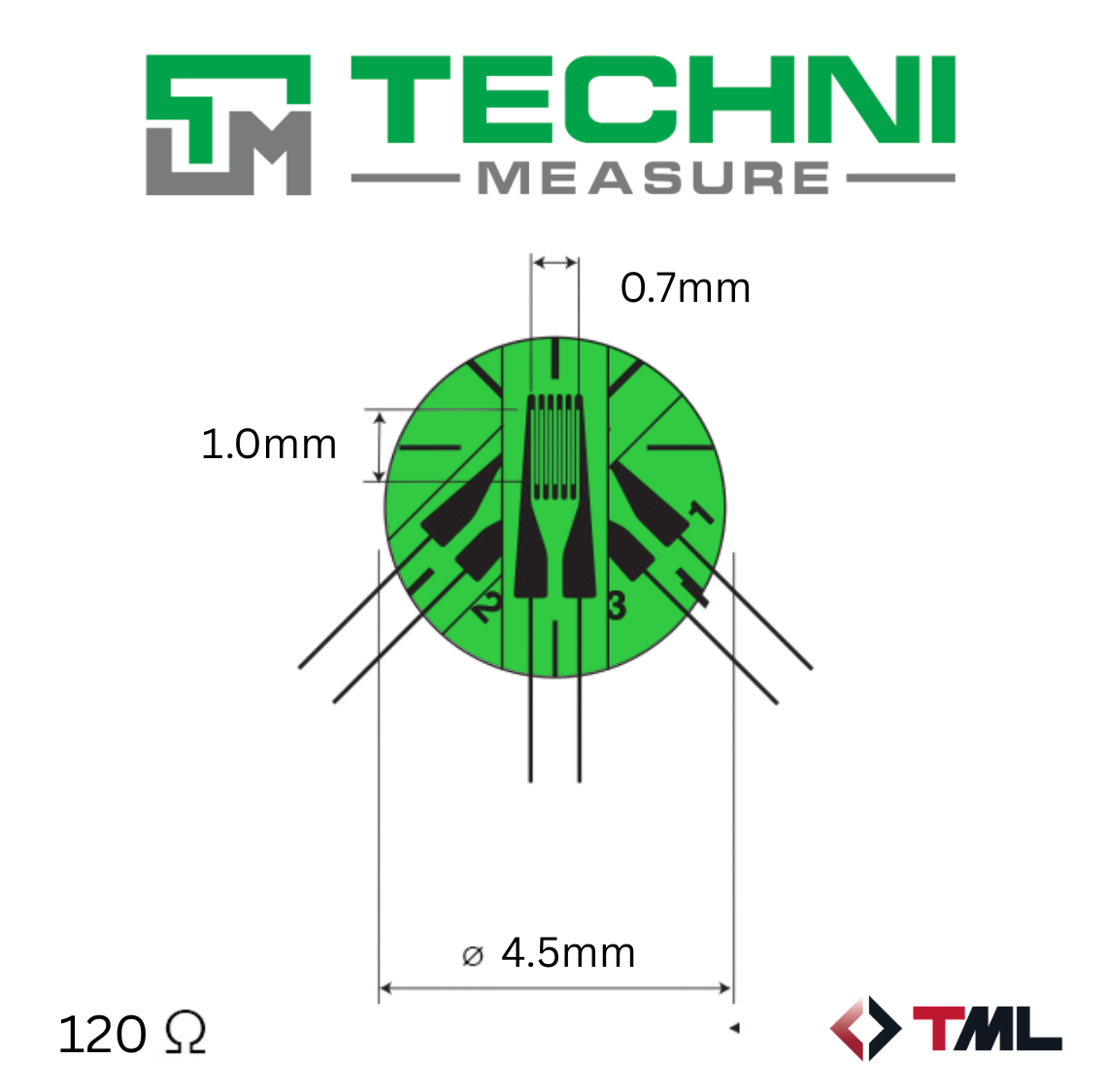

Pack of 10, 1mm GOBLET rosette gauges with aluminium compensation
CE & RoHS2 compliant gauges.
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy
resin for the backing. The epoxy resin backing exhibits excellent
electrical insulation performance, and is color-coded to identify the
objective material for self-temperature-compensation. All standard
strain gauges come with 2cm lead wires pre-attached.
|Applicable specimen||Metal, Glass, Ceramics|
|Operational temp. (°C)||-196~+150°C|
|Strain Limit||5% (50000×10-6 strain)|
|Bonding adhesive||CN, P-2, EB-2|
