Description

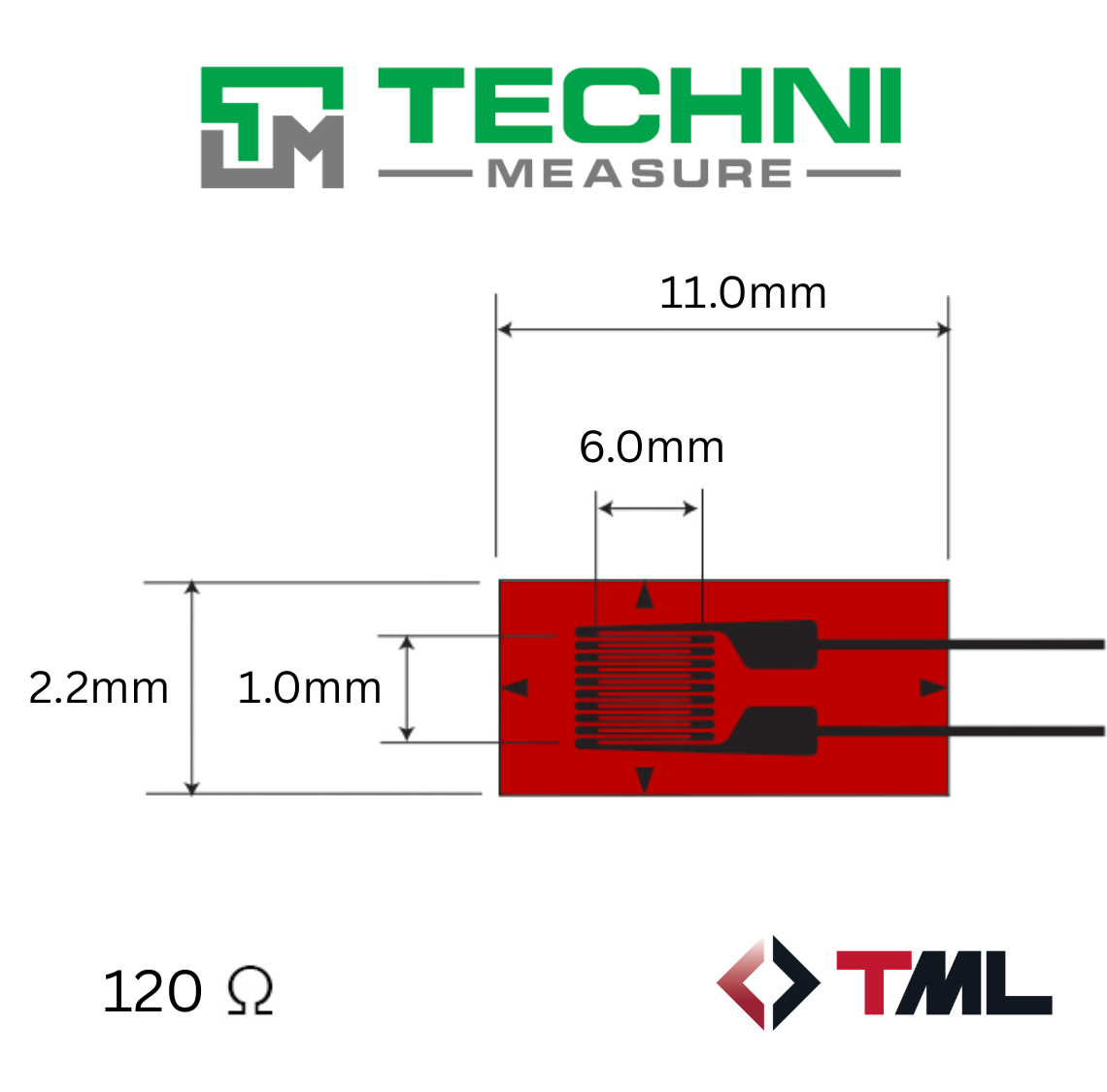

Pack of 10, 6mm linear GOBLET narrow width gauges with mild steel compensation
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy
resin for the backing. The epoxy resin backing exhibits excellent
electrical insulation performance, and is color-coded to identify the
objective material for self-temperature-compensation. All standard
strain gauges come with 2cm lead wires pre-attached.
| Resistance | 120Ω |
| Applicable specimen | Metal, Glass, Ceramics |
| Backing | Epoxy |
| Operational temp. (°C) | -196~+150°C |
| Element | Cu-Ni |
| Strain Limit | 5% (50000×10-6 strain) |
| Bonding adhesive | CN, P-2, EB-2 |
