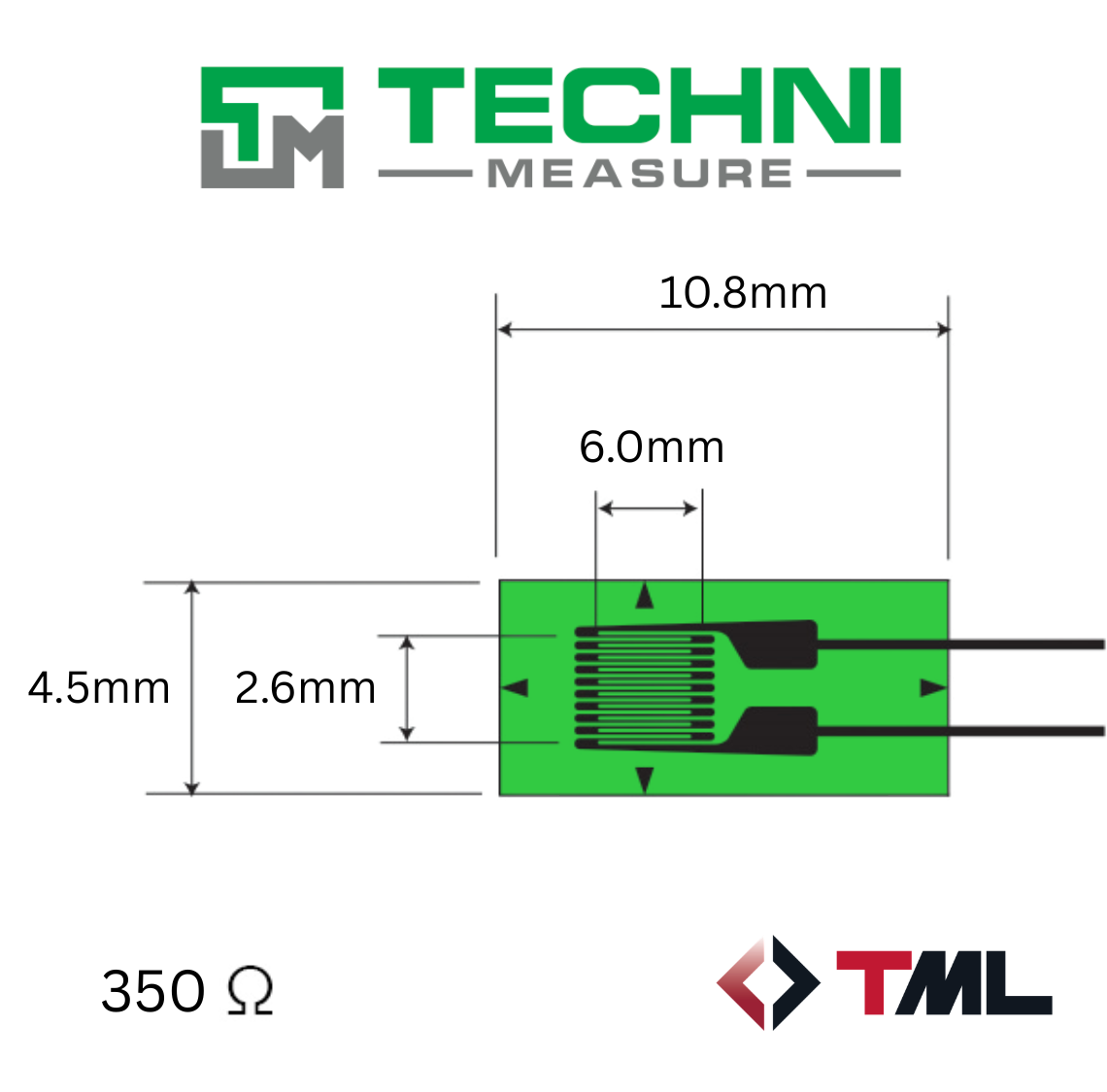

Pack of 10, 6mm 350Ohm linear gauges with aluminium compensation
PLEASE NOTE: These have now been superceded by the new FCAB-6-350-23
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation. All standard strain gauges come with 2cm lead wires pre-attached.
|Applicable specimen||Metal, Glass, Ceramics|
|Operational temp. (°C)||-20~+80°C|
|Strain Limit||5% (50000×10-6 strain)|
|Bonding adhesive||CN, P-2, EB-2|
