FLA-5-17

£38.50 + VAT (£46.20 inc. VAT)

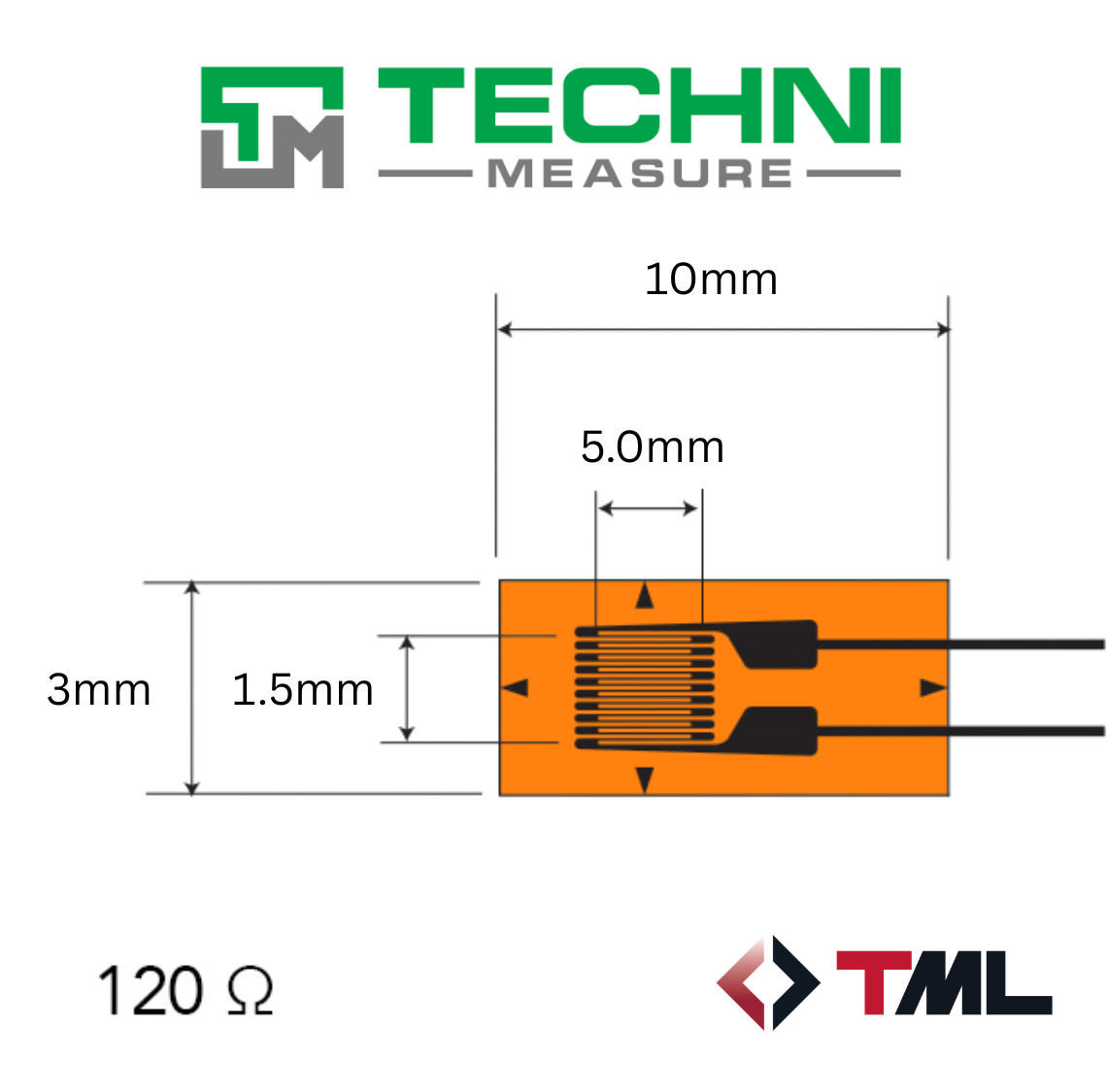

Pack of 10, 5mm linear gauges with stainless steel compensation

Out of stock

SKU: FLA-5-17 Category:

Description

Pack of 10, 5mm linear gauges with stainless steel compensation

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy
resin for the backing. The epoxy resin backing exhibits excellent
electrical insulation performance, and is color-coded to identify the
objective material for self-temperature-compensation. All standard
strain gauges come with 2cm lead wires pre-attached.

Resistance 120Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Gauge Length (mm)

5

Gauge Type

Linear (1 Element)

Material Compensation

17 – Stainless Steel

Resistance (Ω)

120

Max Operating Temperature (°C)

80

Min Operating Temperature (°C)

-20
