£31.00 + VAT (£37.20 inc. VAT)

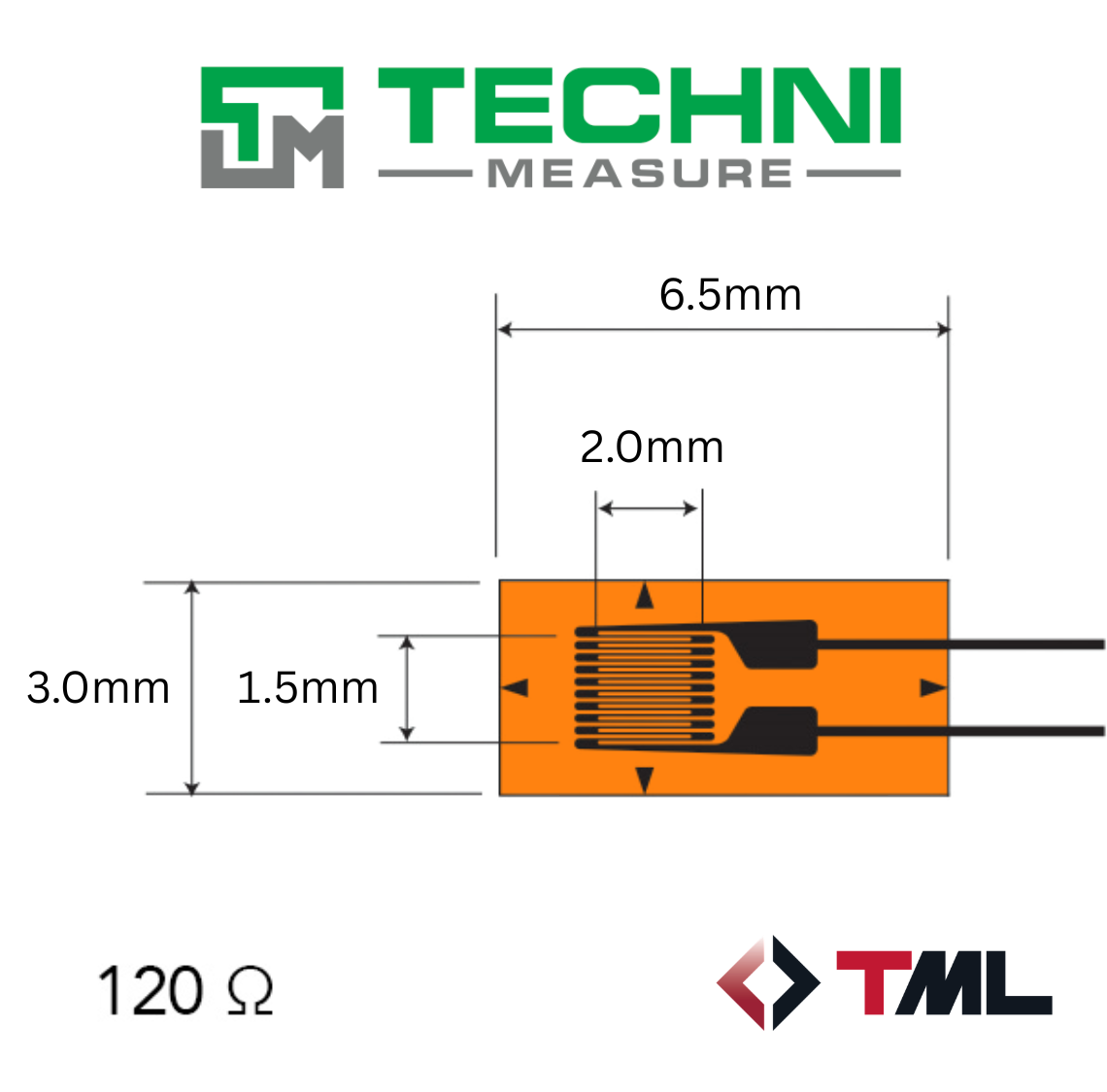

Pack of 10, 2mm linear gauges with stainless steel compensation
Out of stock
PLEASE NOTE: These gauges have been superseded by the new FLAB-2-17 GOBLET gauge, which is CE marked and ROHS2 certified.
Pack of 10, 2mm linear gauges with stainless steel compensation.
| Resistance | 120Ω |
| Applicable specimen | Metal, Glass, Ceramics |
| Backing | Special Plastics |
| Operational temp. (°C) | -196 to +150℃ |
| Element | Cu-Ni |
| Strain Limit | 5% (50000×10-6 strain) |
| Bonding adhesive | CN, P-2, EB-2 |
| Gauge Length (mm) | 2 |
|---|---|
| Gauge Type | Linear (1 Element) |
| Material Compensation | 17 – Stainless Steel |
| Resistance (Ω) | 120 |
| Max Operating Temperature (°C) | 80 |
| Min Operating Temperature (°C) | -20 |
Pack of 10, 6mm cross gauges with mild steel compensation

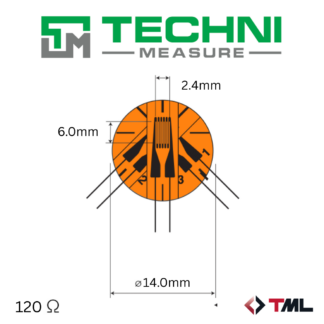

Pack of 10, 6mm rosette gauges with stainless steel compensation
