FCA-3-11-1LJB

£110.00 + VAT (£132.00 inc. VAT)

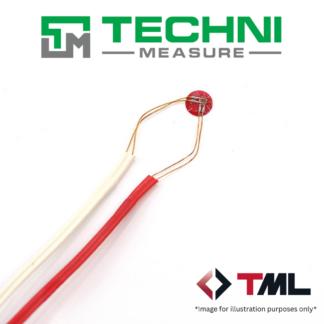

Pack of 10, 3mm cross gauges with mild steel compensation with 1m lead wire

Out of stock

SKU: FCA-3-11-1L Category:

Description

PLEASE NOTE: These gauges have been superseded by the new FCAB-3-11 GOBLET gauge which is CE marked and ROHS2 certified.

Pack of 10, 3mm cross gauges with mild steel compensation with 1m lead wire

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation.
A vinyl leadwire is jointed to the polyimide sheathed gauge leads of a strain gauge. The solder joints are covered with the vinyl sheath of the leadwire. This is our standard method of integral leadwire attachment.

Resistance 120Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -20~+80°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2

Additional information

Material Compensation

11 – Mild Steel

Gauge Type

Cross (2 Element)

Resistance (Ω)

120

Max Operating Temperature (°C)

80

Min Operating Temperature (°C)

-20
