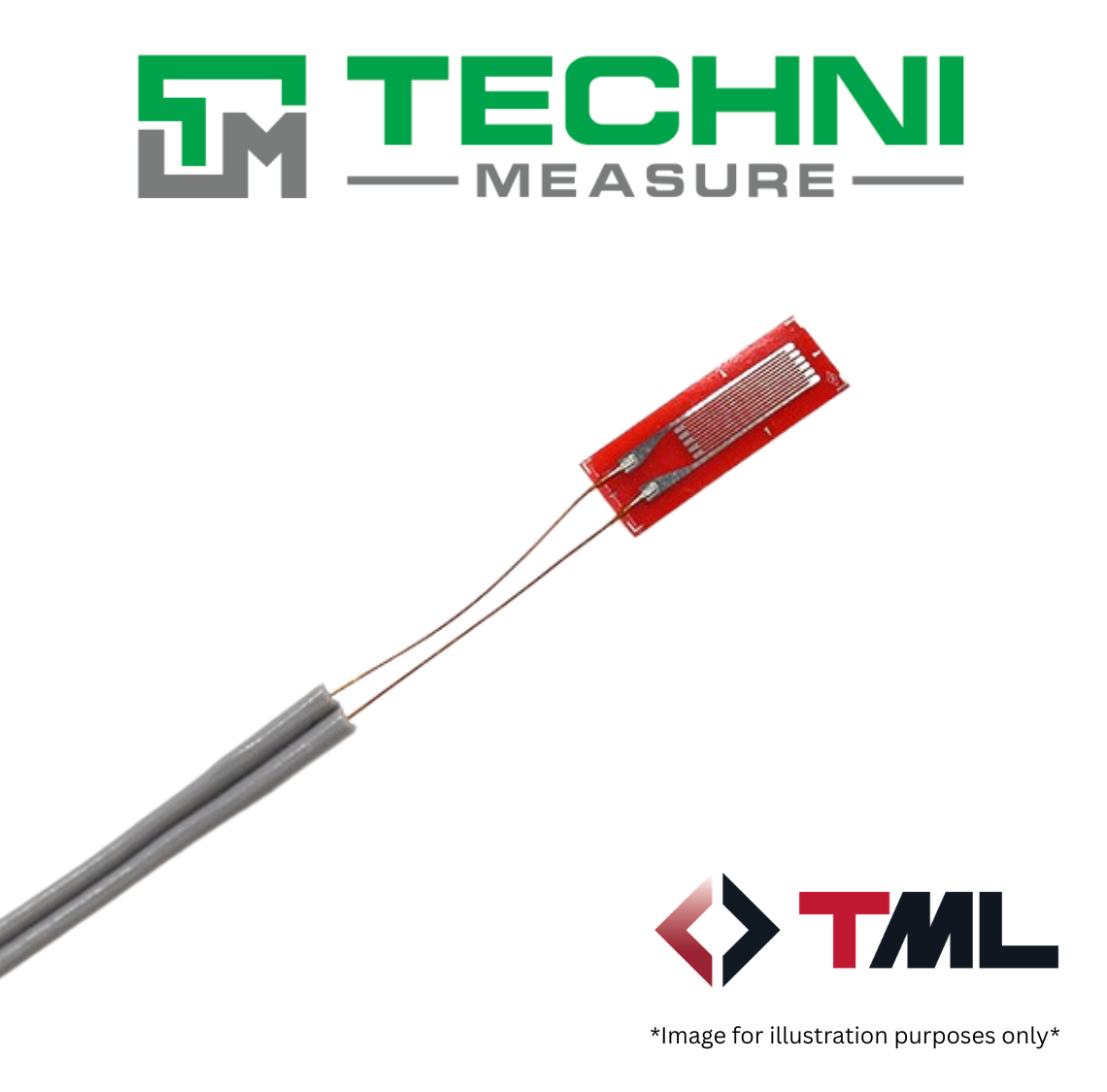

Pack of 10, 1mm linear GOBLET gauges with mild steel comp., 1m 2-wire vinyl leadwire (leadwire temp range: -20°C to +80°C)
These strain gauges employ Cu-Ni alloy foils for the grid and epoxy resin for the backing. The epoxy resin backing exhibits excellent electrical insulation performance, and is color-coded to identify the objective material for self-temperature-compensation.
A vinyl leadwire is jointed to the polyimide sheathed gauge leads of a strain gauge. The solder joints are covered with the vinyl sheath of the leadwire. This is our standard method of integral leadwire attachment.
|Applicable specimen||Metal, Glass, Ceramics|
|Operational temp. (°C)||-196~+150°C|
|Strain Limit||5% (50000×10-6 strain)|
|Bonding adhesive||CN, P-2, EB-2|
