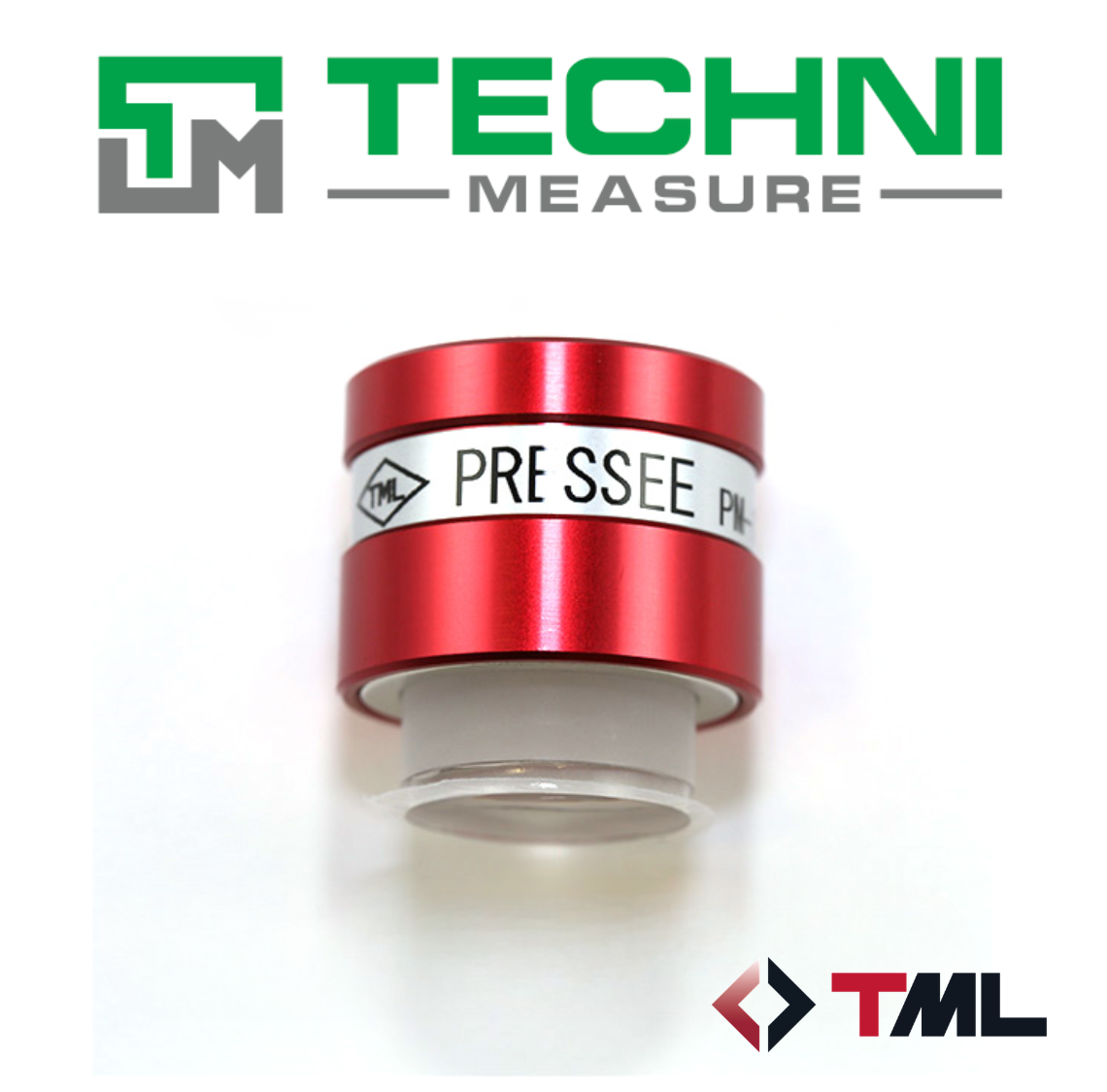

PRESSEE PM-19

£46.00 + VAT (£55.20 inc. VAT)

1 off magnetic, transparent, strain gauge clamp for flat specimens

2 in stock

SKU: PRESSEE PM-19 Category:

Description

1 off magnetic, transparent, strain gauge clamp for flat specimens

PRESSEE is a pressing jig capable of not only pressurizing the strain gauge but also checking adhesion status from the clear pressing part with eyes. The use of PRESSEE saves time to keep pressing the strain gauge with your finger in the bonding work.
In addition, since the PRESSEE can apply a constant pressure to the strain gauge, bonding quality is expected to be higher than a finger pressure.

  • Magnetic method stabilizes the pressing force and adhesion quality
  • As the pressing part is clear, you can check the bonding status with your eyes
  • Spring mechanism enables easy attachment and removal with weak force
  • Work efficiency is improved because other work can be carried out during pressing
  • Small, light, and easy to operate by stack construction
