£94.00 + VAT (£112.80 inc. VAT)
Pack of 10, 3mm linear gauge for plastics
2 in stock

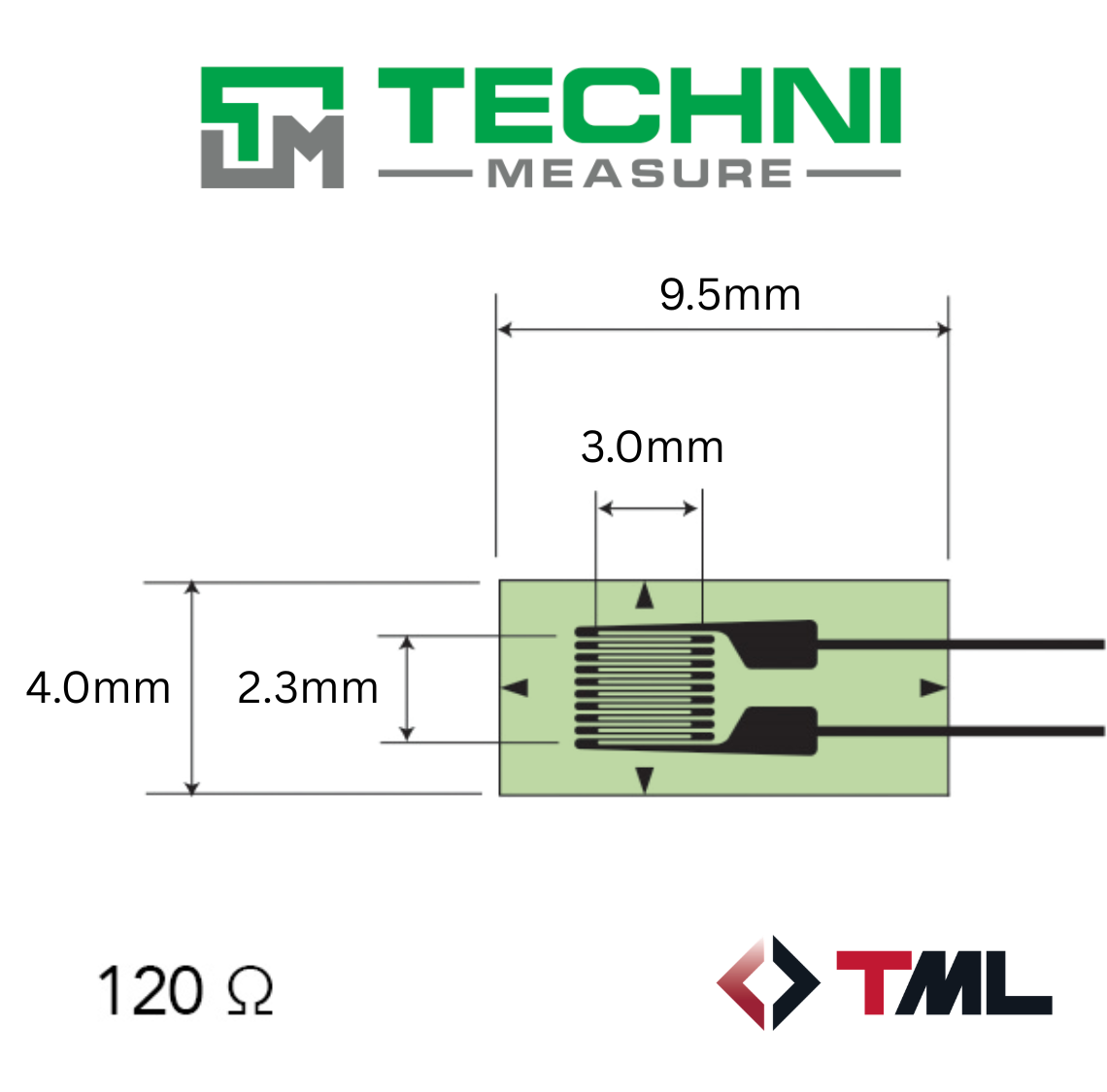

Pack of 10, 3mm linear gauge for plastics
This gauge is suited for measurement on materials such as plastics having low elastic modulus compared to metal. Its specially designed grid reduces the tightening effect of the gauge to the specimen material.
| Resistance | 120Ω |
| Applicable specimen | Plastics |
| Backing | Epoxy |
| Operational temp. (°C) | -20+80°C |
| Element | Cu-Ni alloy foil |
| Strain Limit | 3% (30000×10-6 strain) |
| Bonding adhesive | CN |
| Gauge Type | Linear (1 Element) |
|---|---|
| Material Compensation | 50 – Plastics |
| Resistance (Ω) | 120 |
| Max Operating Temperature (°C) | 80 |
| Min Operating Temperature (°C) | -20 |
