£256.50 + VAT (£307.80 inc. VAT)

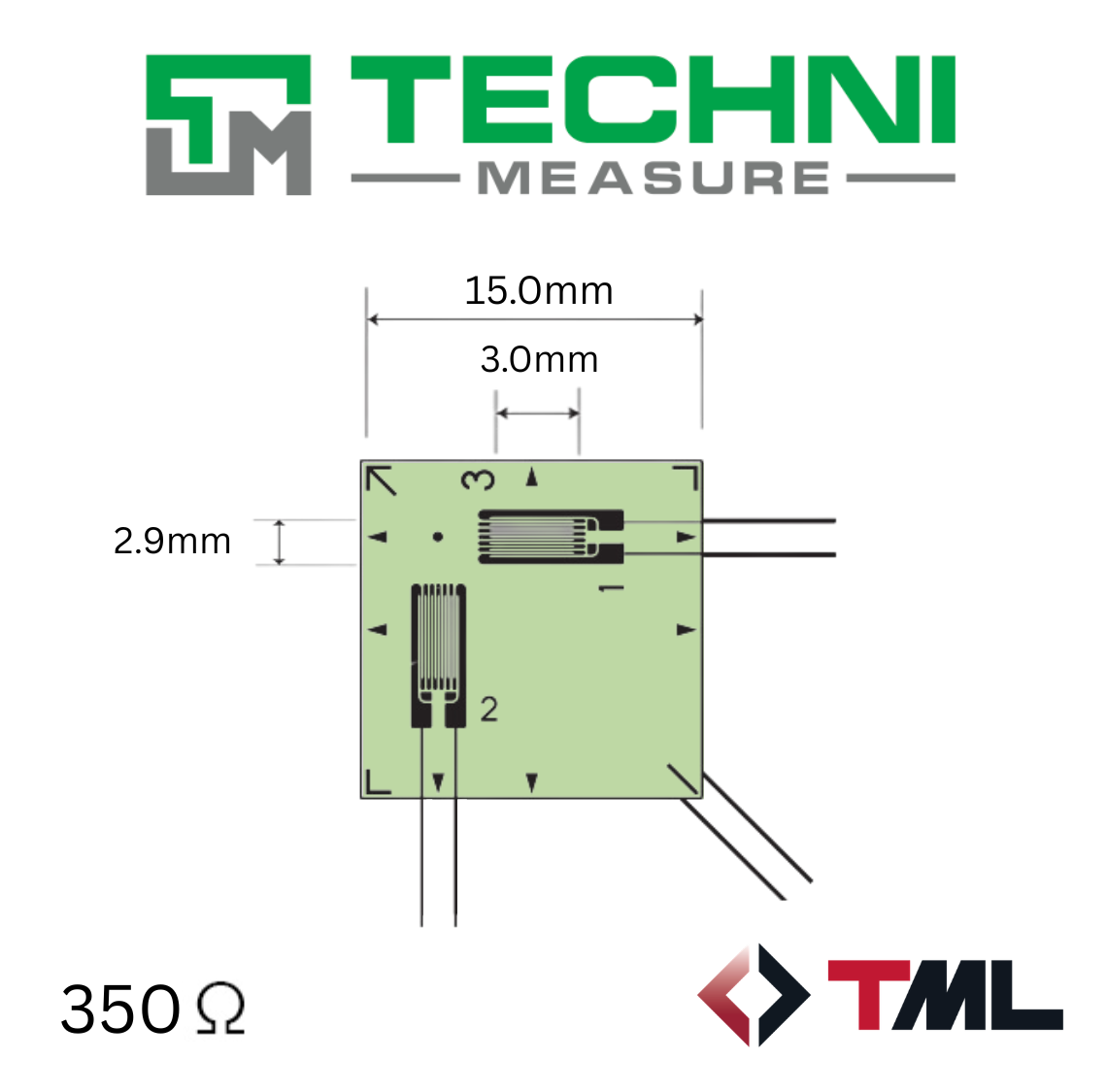

Pack of 10, 3mm 350Ohm 2-grid gauges for plastic with epoxy resin compensation
1 in stock
Pack of 10, 3mm 350Ohm 2-grid gauges for plastic with epoxy resin compensation
This gauge is suited for measurement on materials such as plastics having low elastic modulus compared to metal. Its specially designed grid reduces the tightening effect of the gauge to the specimen material.
| Resistance | 350Ω |
| Applicable specimen | Plastics |
| Backing | Epoxy |
| Operational temp. (°C) | -20+80°C |
| Element | Cu-Ni alloy foil |
| Strain Limit | 3% (30000×10-6 strain) |
| Bonding adhesive | CN |
| Gauge Type | Cross (2 Element) |
|---|---|
| Material Compensation | 50 – Plastics |
| Resistance (Ω) | 350 |
| Max Operating Temperature (°C) | 80 |
| Min Operating Temperature (°C) | -20 |
