Description

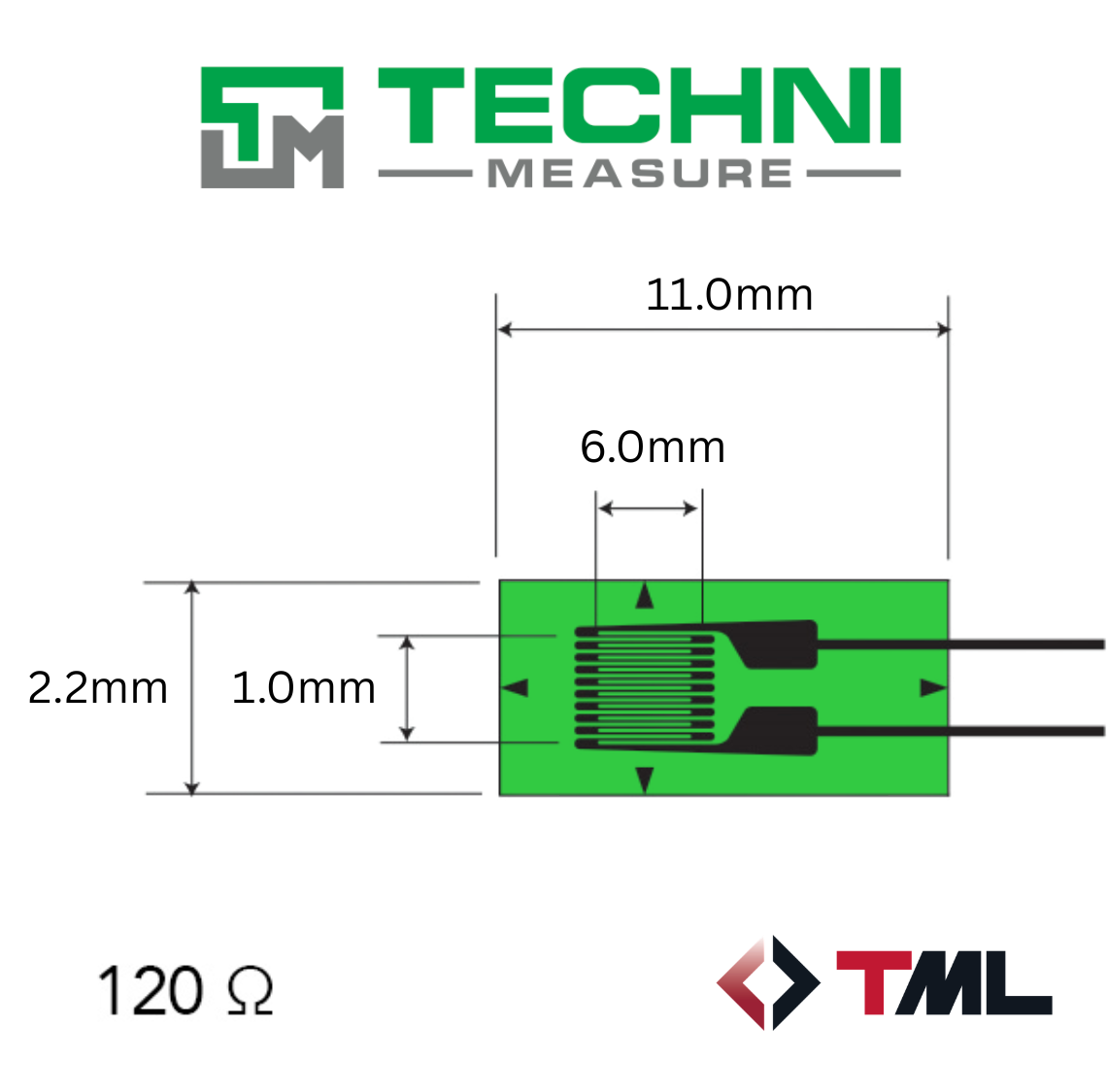

Pack of 10, 6mm linear GOBLET narrow-width gauges with aluminium compensation.
These are foil strain gauges designed for general use, featuring an extended operating temperature range of -196 to +150°C due to the incorporation of special plastic backings. The backings are colour-coded to indicate the specific material for self-temperature compensation. Additionally, a variety of lead wires are available for this series to accommodate different measurement conditions.
| Resistance | 120Ω |
| Applicable specimen | Metal, Glass, Ceramics |
| Backing | Special Plastics |
| Operational temp. (°C) |  -196~+150°C |
| Element | Cu-Ni |
| Strain Limit | 5% (50000×10-6 strain) |
| Bonding adhesive | CN, P-2, EB-2 |
