Description

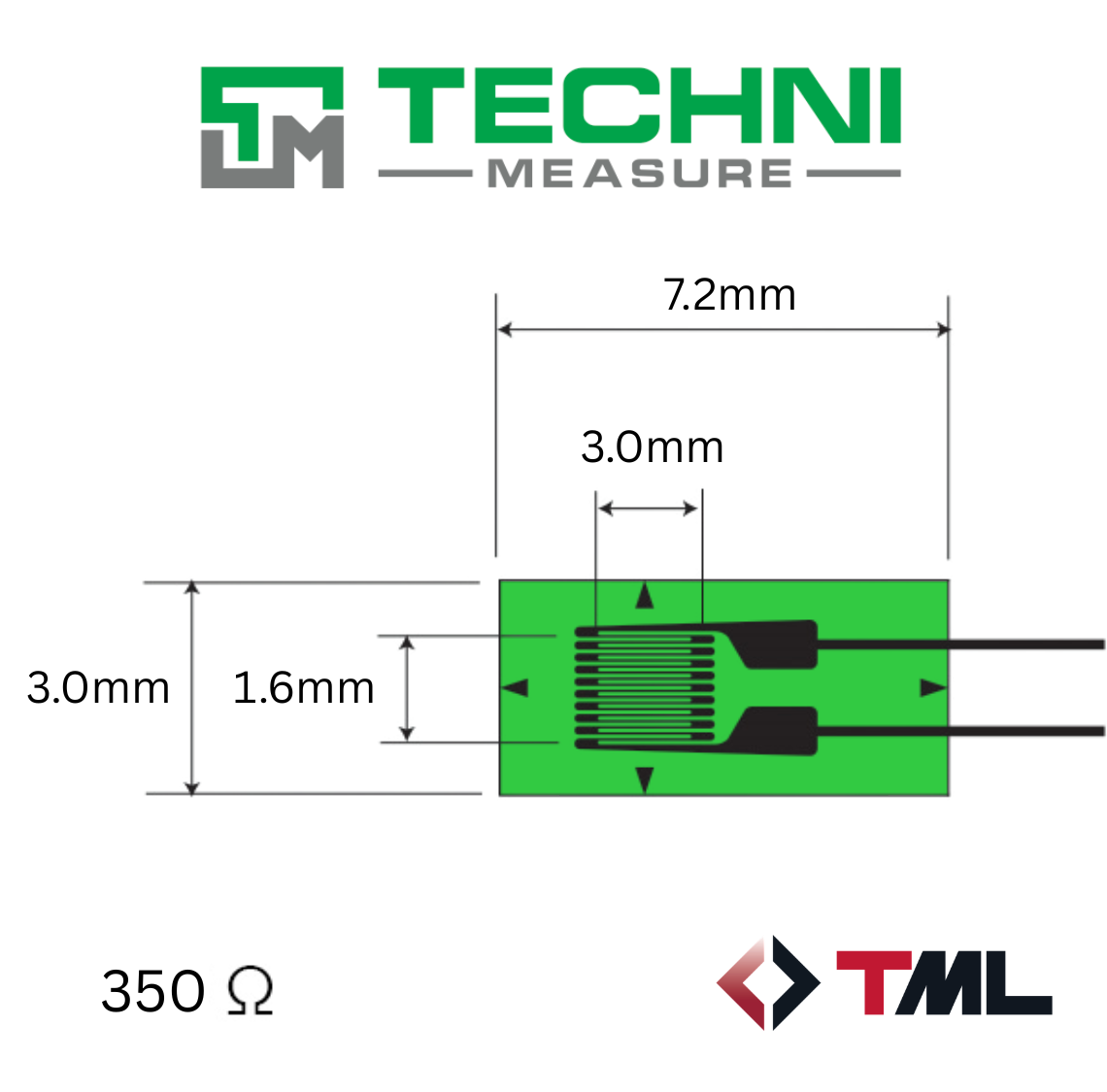

Pack of 10, 3mm 350 Ohm GOBLET linear gauges with aluminium compensation
This gauge utilizes polyimide resin as a backing. Strain measurement in high temperature is easily realized by bonding the gauge with room temperature curing adhesive NP-50. All standard strain gauges come with 2cm lead wires pre-attached.
| Resistance | 350Ω |
| Applicable specimen | Metal, Ceramics |
| Backing | Polyimide |
| Operational temp. (°C) | -196~+150°C |
| Element | Cu-Ni alloy foil |
| Strain Limit | 3%(30000×10-6strain) |
| Bonding adhesive | NP-50B, CN, C-1 |
