FCAB-5-11

£103.00 + VAT (£123.60 inc. VAT)

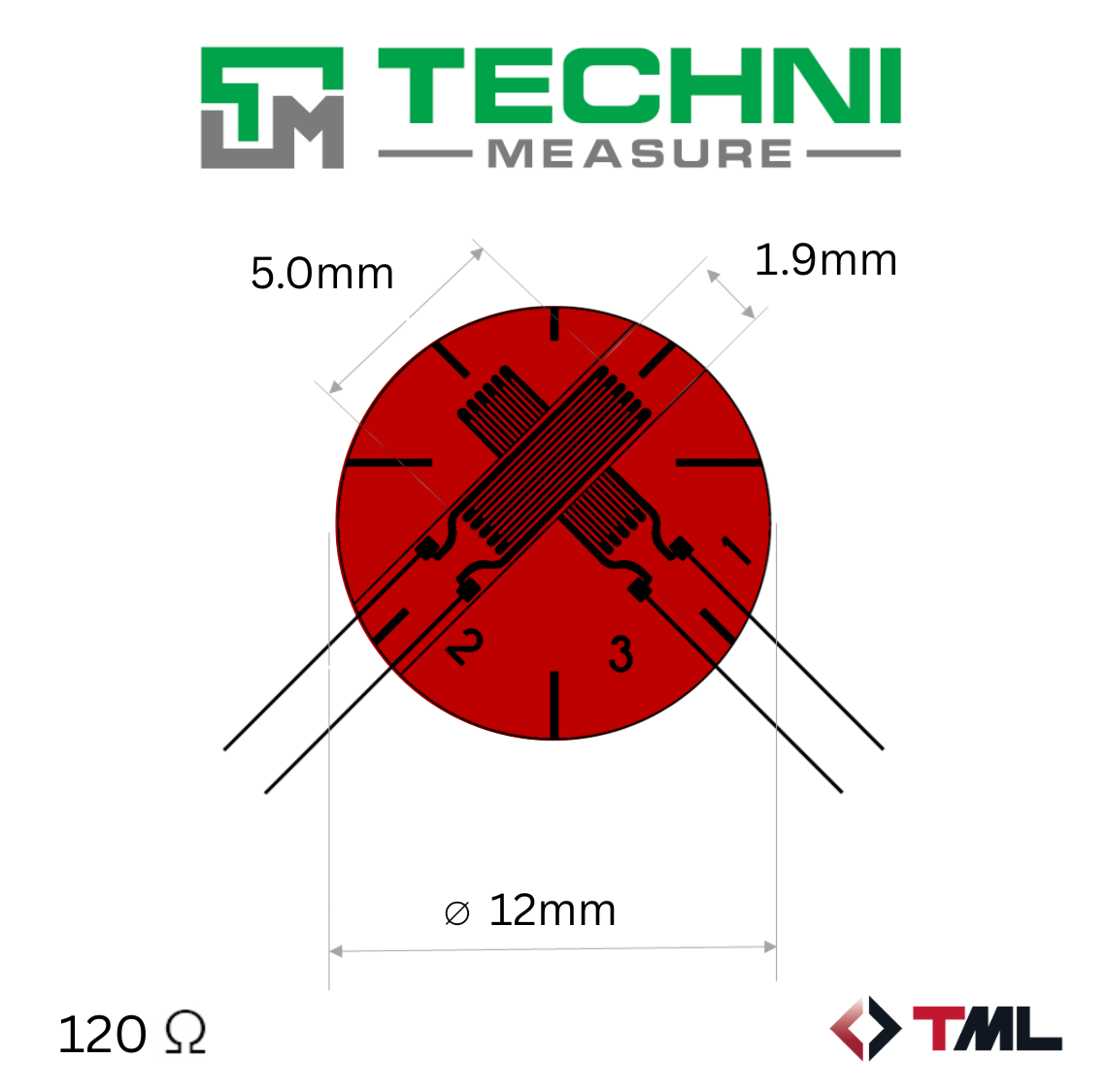

Pack of 10, 5mm GOBLET cross gauges with mild steel compensation

14 in stock

SKU: FCAB-5-11 Category:

Description

Pack of 10, 5mm GOBLET cross gauges with mild steel compensation

CE & RoHS2 compliant gauges.

These strain gauges employ Cu-Ni alloy foils for the grid and epoxy
resin for the backing. The epoxy resin backing exhibits excellent
electrical insulation performance, and is color-coded to identify the
objective material for self-temperature-compensation. All standard
strain gauges come with 2cm lead wires pre-attached.

Resistance 120Ω
Applicable specimen Metal, Glass, Ceramics
Backing Epoxy
Operational temp. (°C) -196~+150°C
Element Cu-Ni
Strain Limit 5% (50000×10-6 strain)
Bonding adhesive CN, P-2, EB-2
