Description
PLEASE NOTE: These gauges have been superseded by the new BFLAB-5-3 GOBLET gauge, which is CE marked and ROHS2 certified.

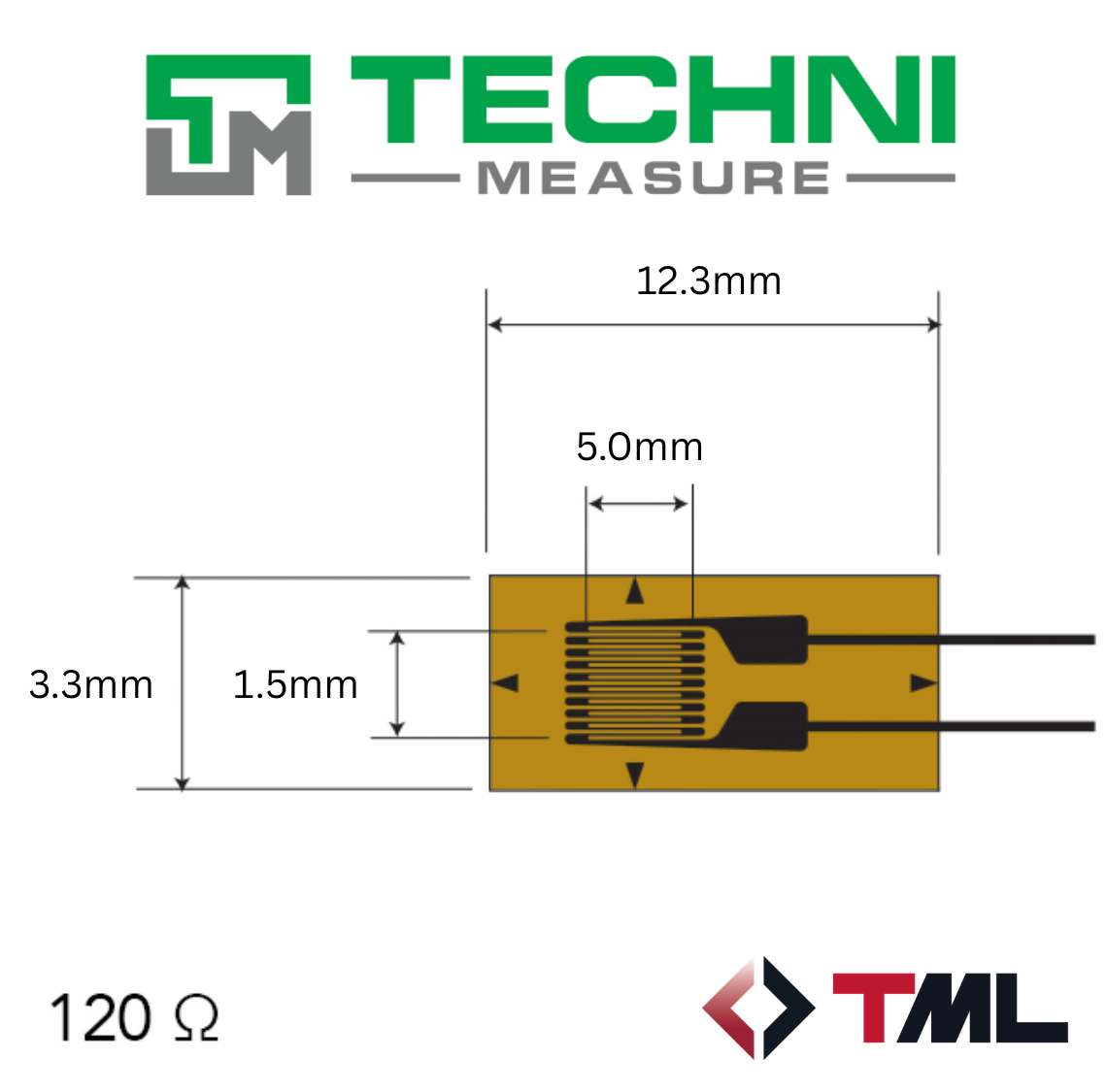

Pack of 10, 5mm linear gauges for composite materials with 3 compensation.
This gauge is designed for measurement on composite materials. It has a specially designed grid configuration to reduce the tightening effect of the gauge on the specimen. As temperature compensation is available for materials with a thermal expansion coefficient of 3, 5 or 8ppm/°C, this series is recommended for ceramic, carbon, and composite materials.
| Resistance | 120Ω |
| Applicable specimen | Composite materials |
| Backing | Polyimide |
| Operational temp. (°C) | -20~+200°C |
| Element | Cu-Ni |
| Strain Limit | 3% (30000×10-6 strain) |
| Bonding adhesive | CN, NP-50B |
