Description

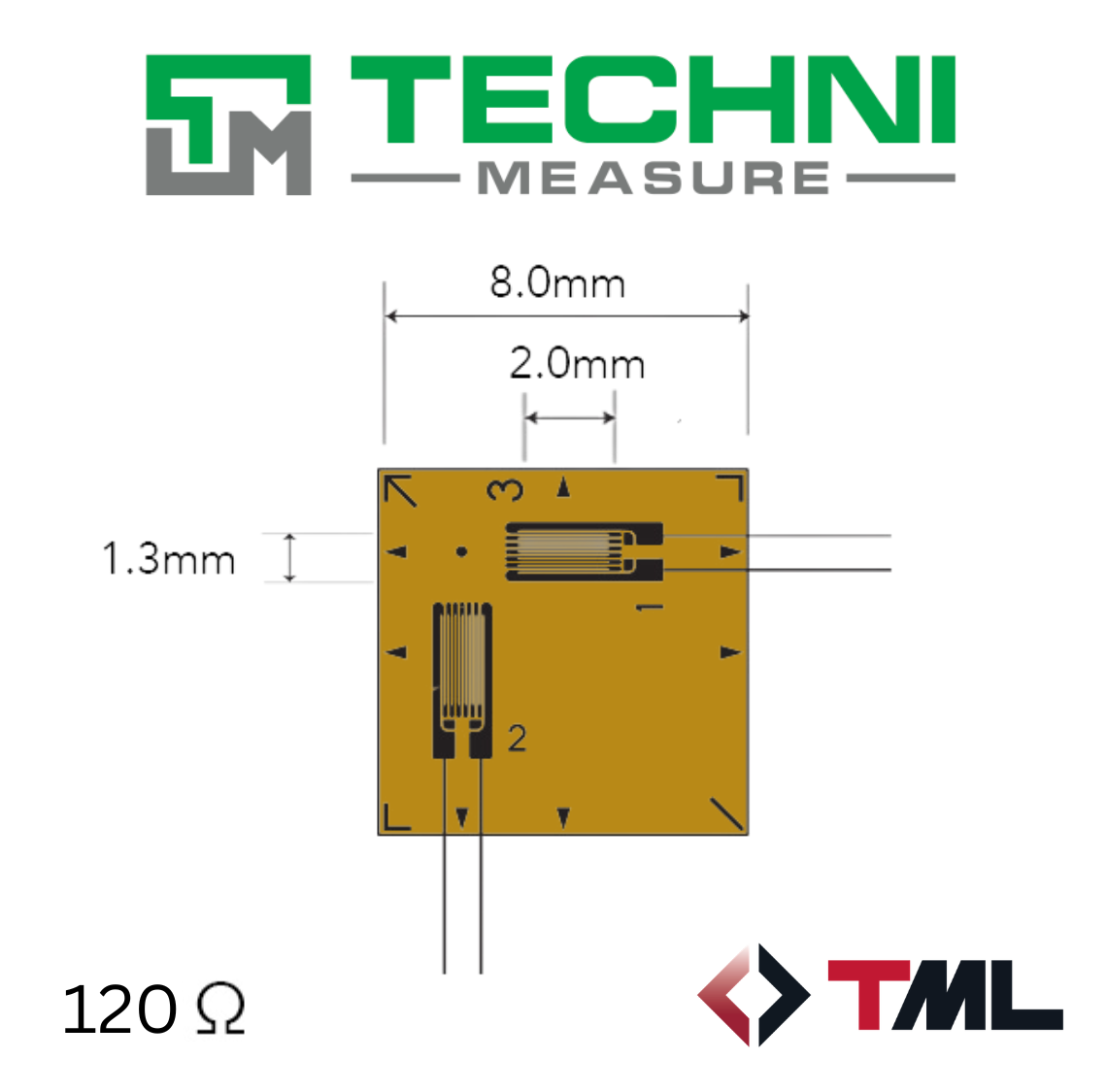

Pack of 10, 2mm 2-grid gauges for composite materials with 5 compensation
This gauge is designed for measurement on composite materials. It has a specially designed grid configuration to reduce the tightening effect of the gauge to the specimen. As the temperature compensation is available for material with thermal expansion coefficient of 3, 5 or 8ppm/°C, this series is recommendable for ceramic, carbon, and composite materials
| Resistance | 120Ω |
| Applicable specimen | Composite materials |
| Backing | Polyimide |
| Operational temp. (°C) | -20~+200°C |
| Element | Cu-Ni |
| Strain Limit | 3% (30000×10-6 strain) |
| Bonding adhesive | CN, NP-50B |
