Description

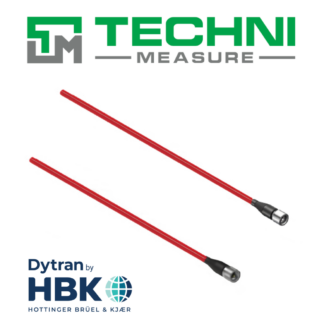

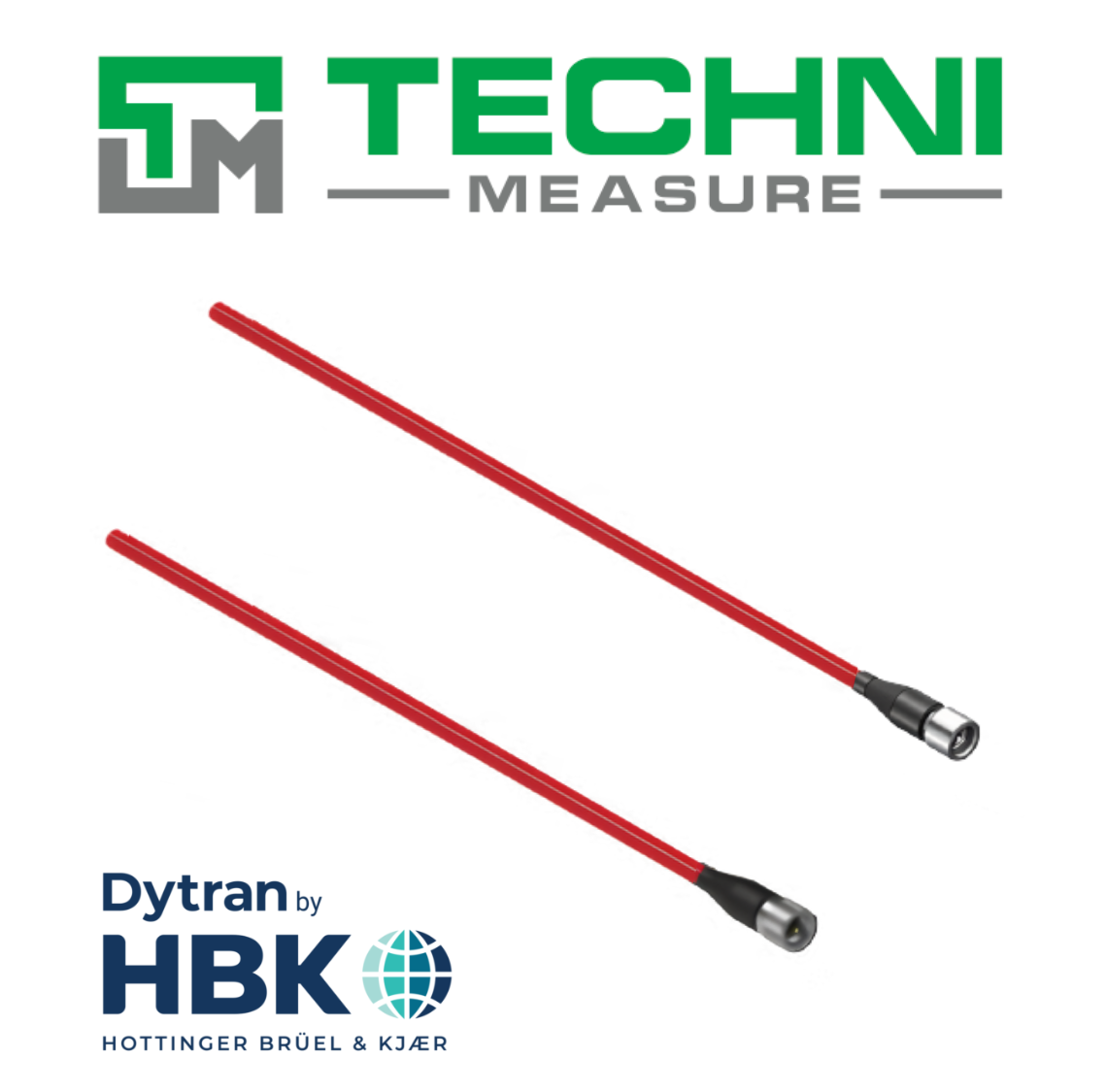

Dytran by HBK series 6013A is a 10ft low-outgassing cable assembly. The mini-coaxial cables are jacketed in Teflon with a 10-32 plug to BNC jack.
| Connector A: | 10-32 plug |
| Connector B: | 10-32 plug |
| Type: | Coaxial, low noise, low outgassing for space applications |
| Material: | Teflon™ jacket |
| Color: | Red |
| Temperature Range (°C): | -55 to +110 |
| Impedance (ohm): | 52 |
| Capacitance (pF/m): | 100 |
| Outer Diameter (mm, +/-): | 1.9 |
